Takeuchi TL150 - Page 60

III-17
MACHINE CONFIGURATIONTRAVEL SYSTEM

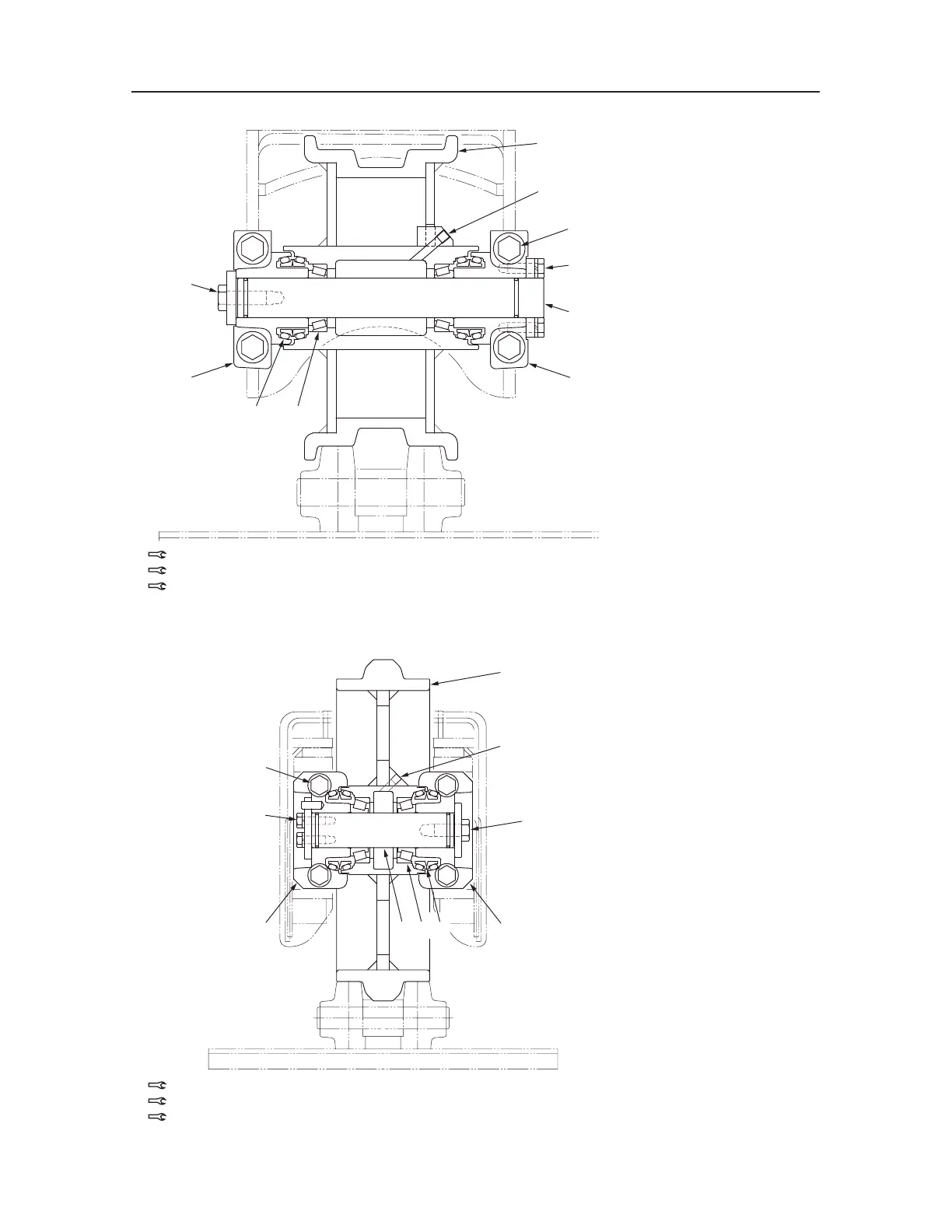

Track Roller C
1. Idler
2. Shaft
3. Cover A
4. Cover B
5. Bearing
6. Floating Seal
7. Oil Filler Plug
A: 156 N·m; Apply thread-locking compound.
B:
55 N·m; Apply thread-locking compound.
C:
20 N·m
Idler
1. Idler
2. Shaft
3. Cover A
4. Cover B
5. Bearing
6. Floating Seal
7. Oil Filler Plug
A: 158 N·m; Apply thread-locking compound.
B:
55 N·m; Apply thread-locking compound.
C:
20 N·m

  

















