MACHINE CONFIGURATION
TRAVEL SYSTEM

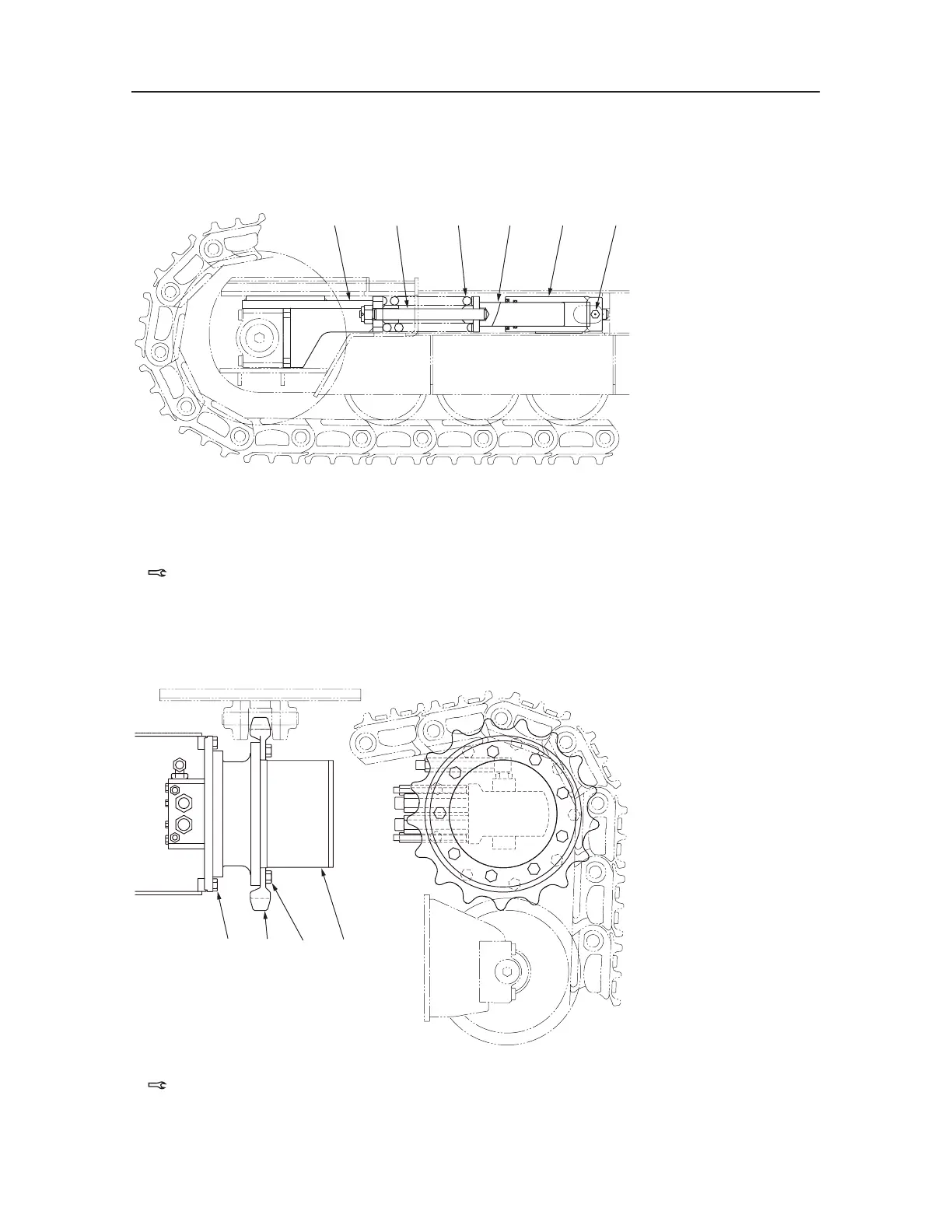

Track Adjuster
1. Yoke
2. Reach Rod
3. Spring
4. Piston
5. Cylinder
6.
Grease DischargeValve
A: 59 N·m
Travel Motor
1. Travel Motor
2. Sprocket
A: 241 N·m; Apply thread-locking compound.


  



