RUN NOW Excite +: Technical Service guide - rev. 6.2
Page 6.42

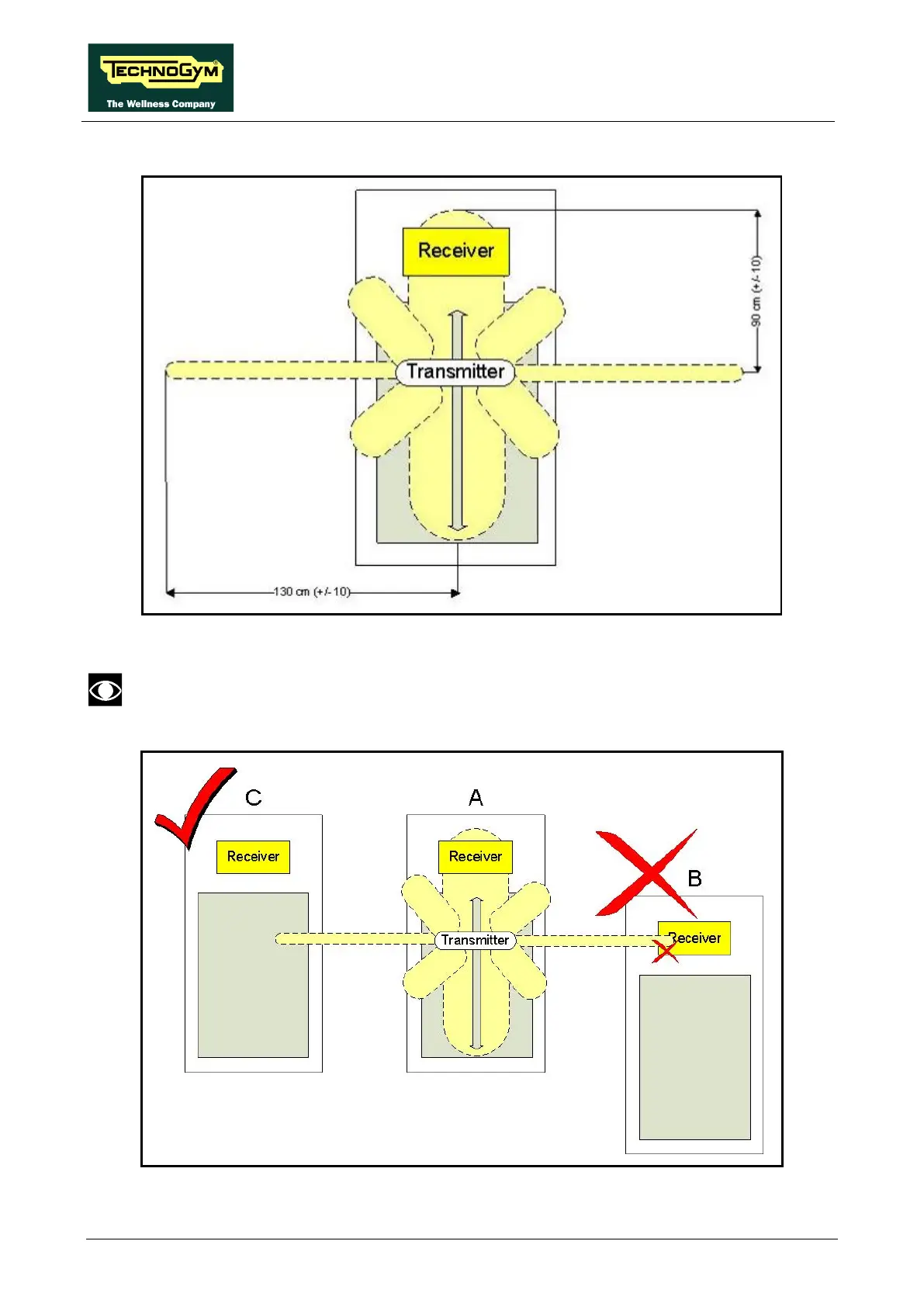

(2) Take care of the following diagram to correctly position the machines:
Figure 6-1
The active area of the transmitter is wider on the lateral side (130cm) instead of the
front or the back side (90cm). Take care of the following diagram:
Figure 6-2
