7.11.2. DISASSEMBLING THE CENTRAL HANDLEBAR

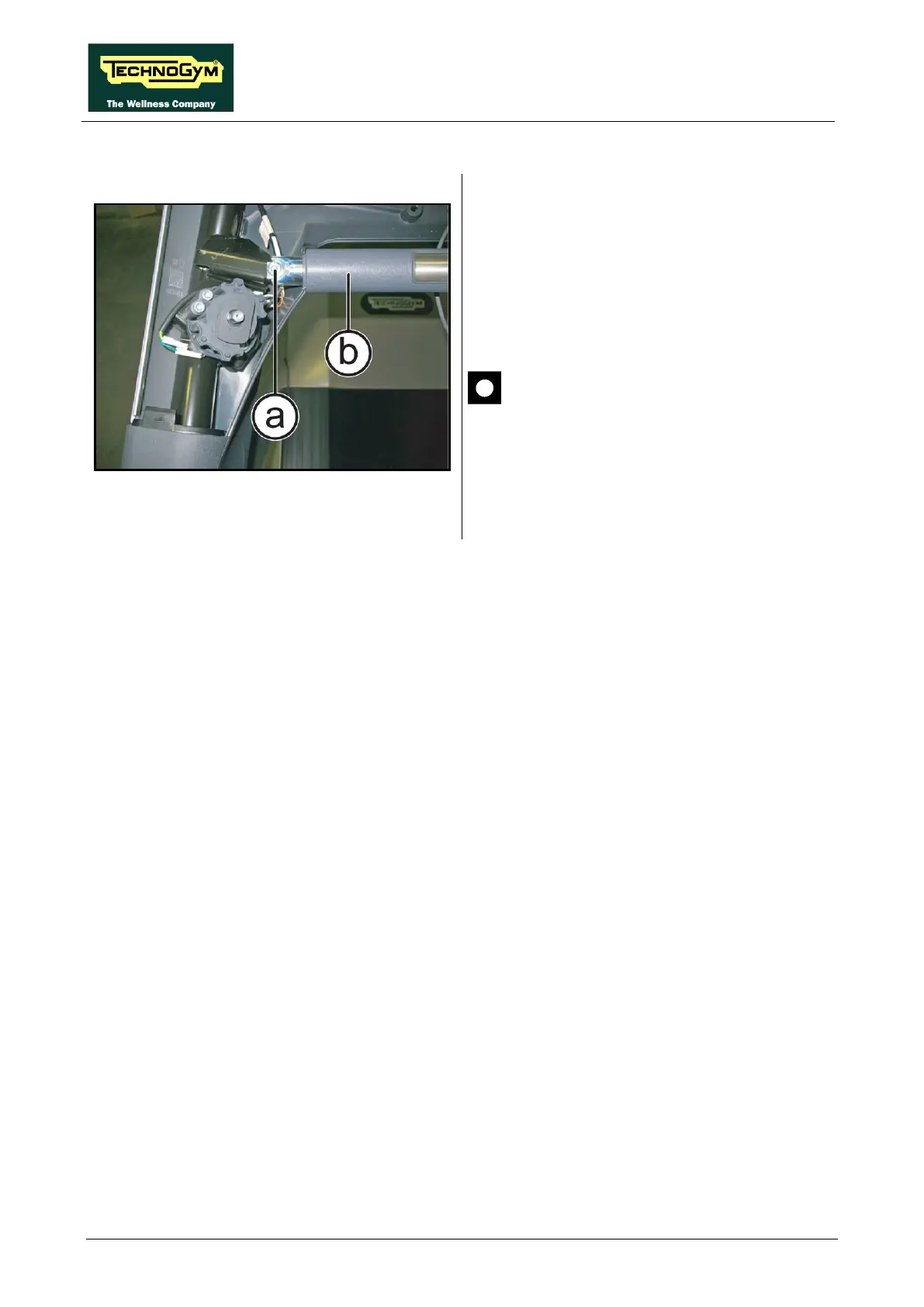

Figure 7-53
Carry out the procedure described in paragraph:
7.11.1. “Disassembling the upper dashboard”.
1. Back off the 2 screws (a) using a 6mm
hexagonal wrench.
2. Remove the central handlebar (b).
CAUTION: During the reassembly lock
down the screws (a) using a torque
wrench set for 30Nm.
To reassemble the Handlebar, carry out the
above steps in reverse order.
