Technogym RUN NOW EXCITE + - DVB-T Tuner Board (B)

RUN NOW Excite +: Technical Service guide - rev. 6.2
Page 7.7
7.2.2.2. DVB-T Tuner Board (B)

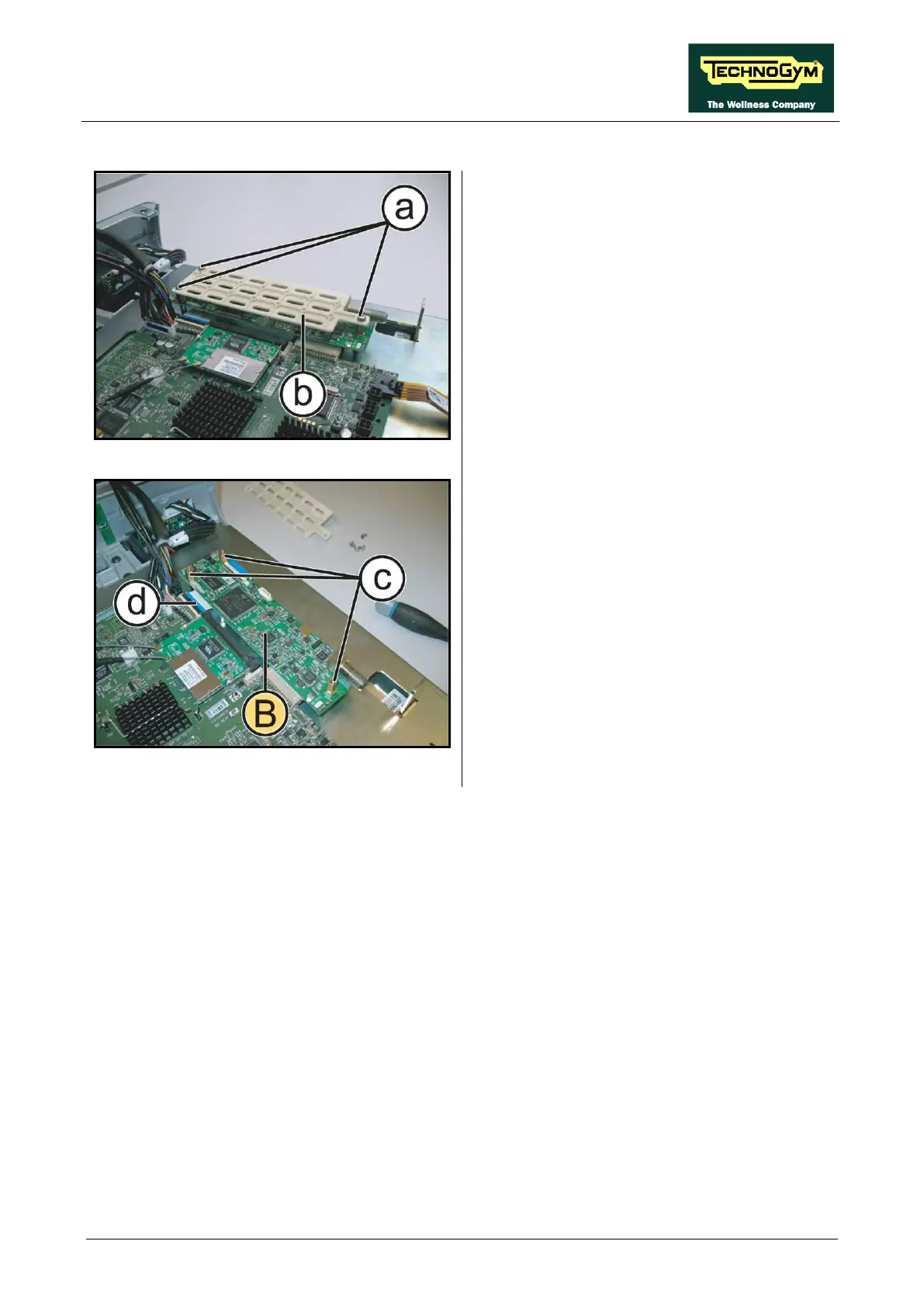

Figure 7-11
1. Back off the 3 screws (a)
using a medium
Phillips screwdriver.
2. Remove the Tuner board protection guard
(b).
Figure 7-12
3. Back off the 3 hex spacers (c).
4.
Lift up the black tab and disconnect the flat
cable (d).
5. Remove the Tuner Board (B).
To reassembly the Tuner Board, follows the
above steps in the reverse order.
