7.14. DISASSEMBLING THE LOWER KIT GUARD
7.14.1. DISASSEMBLING THE UPPER GUARD

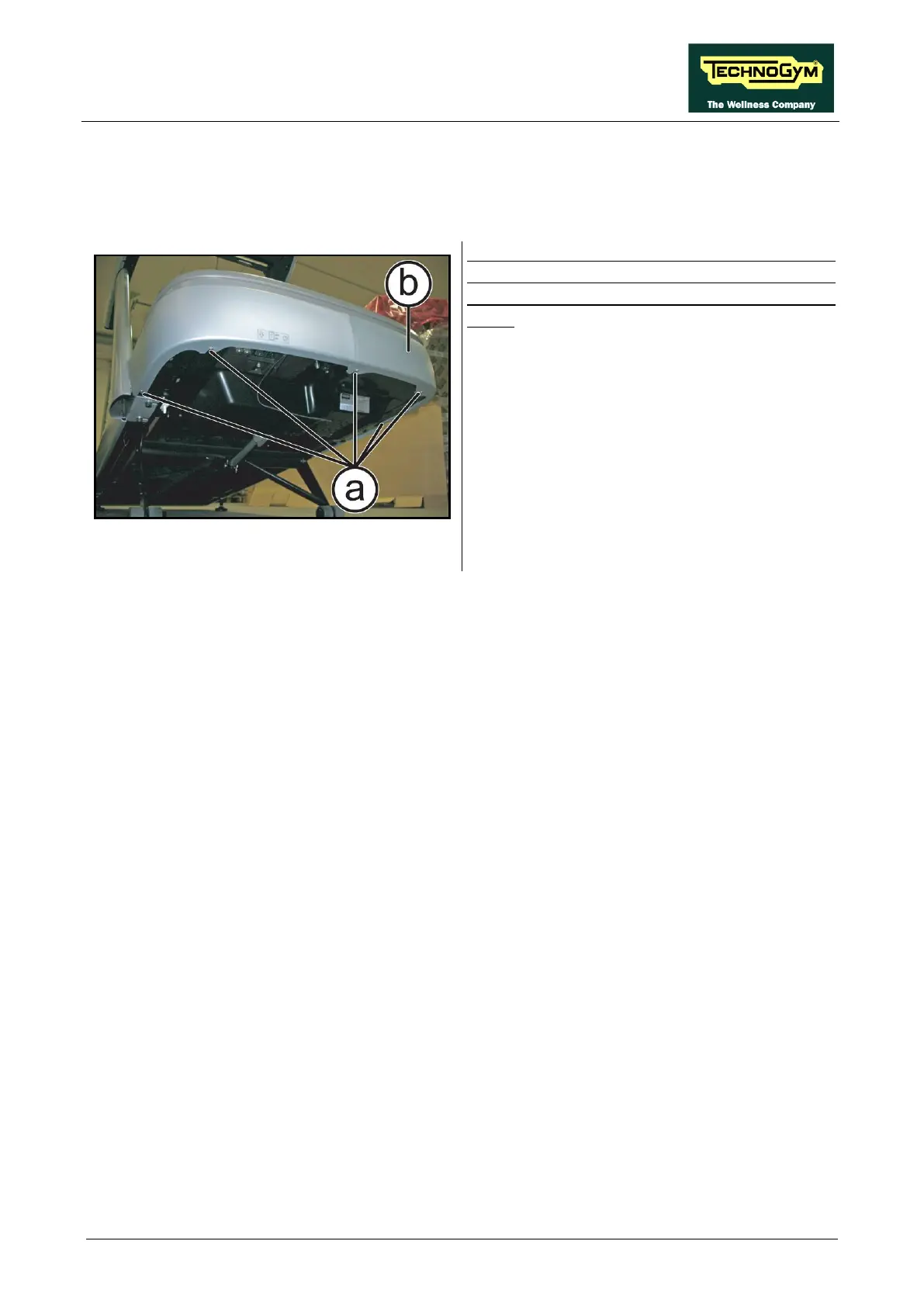

Figure 7-60
Lift up the machine at the elevation of 10%, to
make the procedure easier and turn off the
machine. Unplug t
he mains lead from the wall
outlet.
1. Loosen the 5 screws (a)
using a 4mm
hexagonal wrench.
2. Remove the upper guard (b)
pulling it out
from the front side of the machine.
To reassemble the Upper Guard, carry out the
above steps in reverse order.
