7.22.3. DISASSEMBLING THE TRANSMISSION BELT AND MOTOR ROLLER

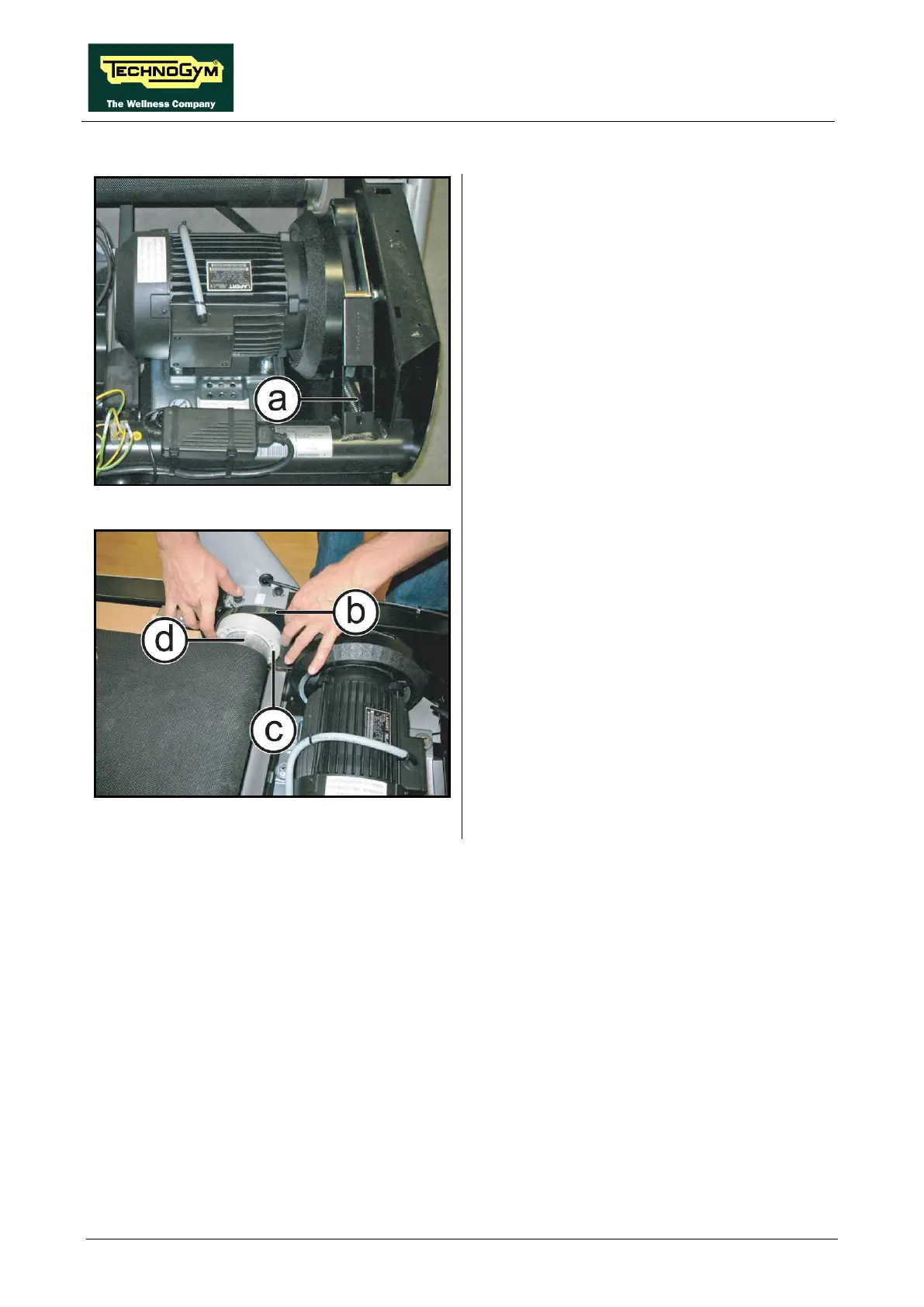

Figure 7-17
Carry out the procedure described in paragraph:
“Disassembling the upper guard” and 7.22.1.
“Disassembling the footrest”.
1. Release the belt tensioner spring (a).
Figure 7-18
2. Remove the belt (b) from its pulley (c) and
place it on the front roller.
3. Remove the motor roller (d) upwards. First
on the right side and then axially on left.
4. Remove the transmission belt (b) if
necessary.
To reassemble the Motor Roller, carry out the
above steps in reverse order.
