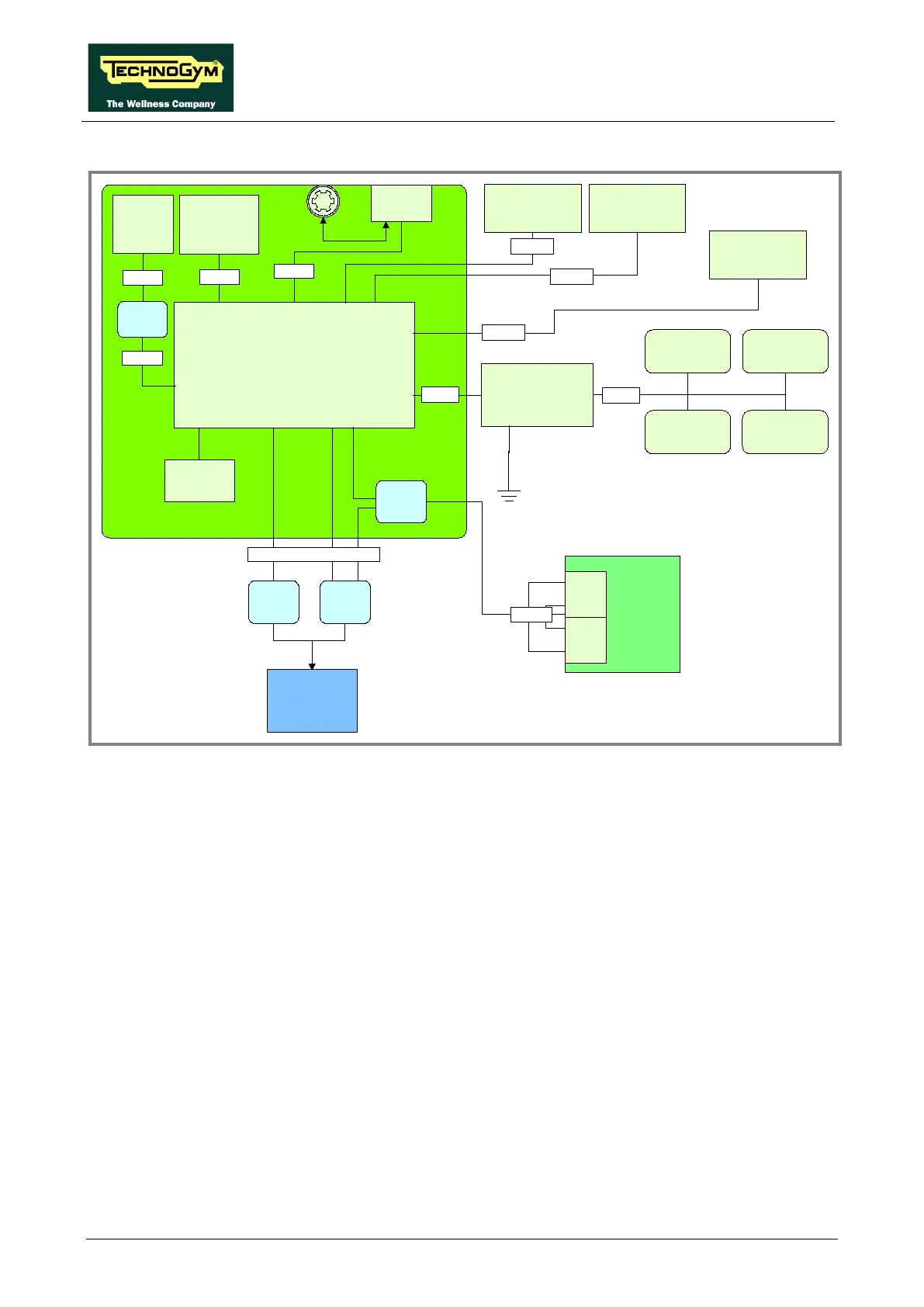

2.9.3.2. 700 and 900 LED powered models (ARM Board)
LOWER KIT
DISPLAY
ARM Board
Up/Down
JOYSTICK
(Left)
Speed
JOYSTICK
(Right)
CN13
CN11
TRM-31
Keyboard
C-Safe
Reader
CN1
CN1
CN2
CN7
CN9
CN10
Patch.
Conn.
B
Patch.
Conn.
C
HS/HR
Riceiver
HD4
HD3&2
HD1
CU244
Patch.
Conn.
Dual
TGS
Reader
CN3
CBQ-32
CU132
CN1
Patch.
Conn.
A
CN6
Upper Sensor
(Right)
Upper Sensor
(Left)
CU136
TRM-29
TRM-29
Lower Sensor
(Left)
Lower Sensor
(Right)
CN23
Ready to Run
Board
CU227
EMERGENCY
Button
MICRO
MICRO
NC
C
C
NC
CU377
air duct
micro
CN12
CU307
CU242 o CU243
