7.2.2. VISIO 19” DISPLAY

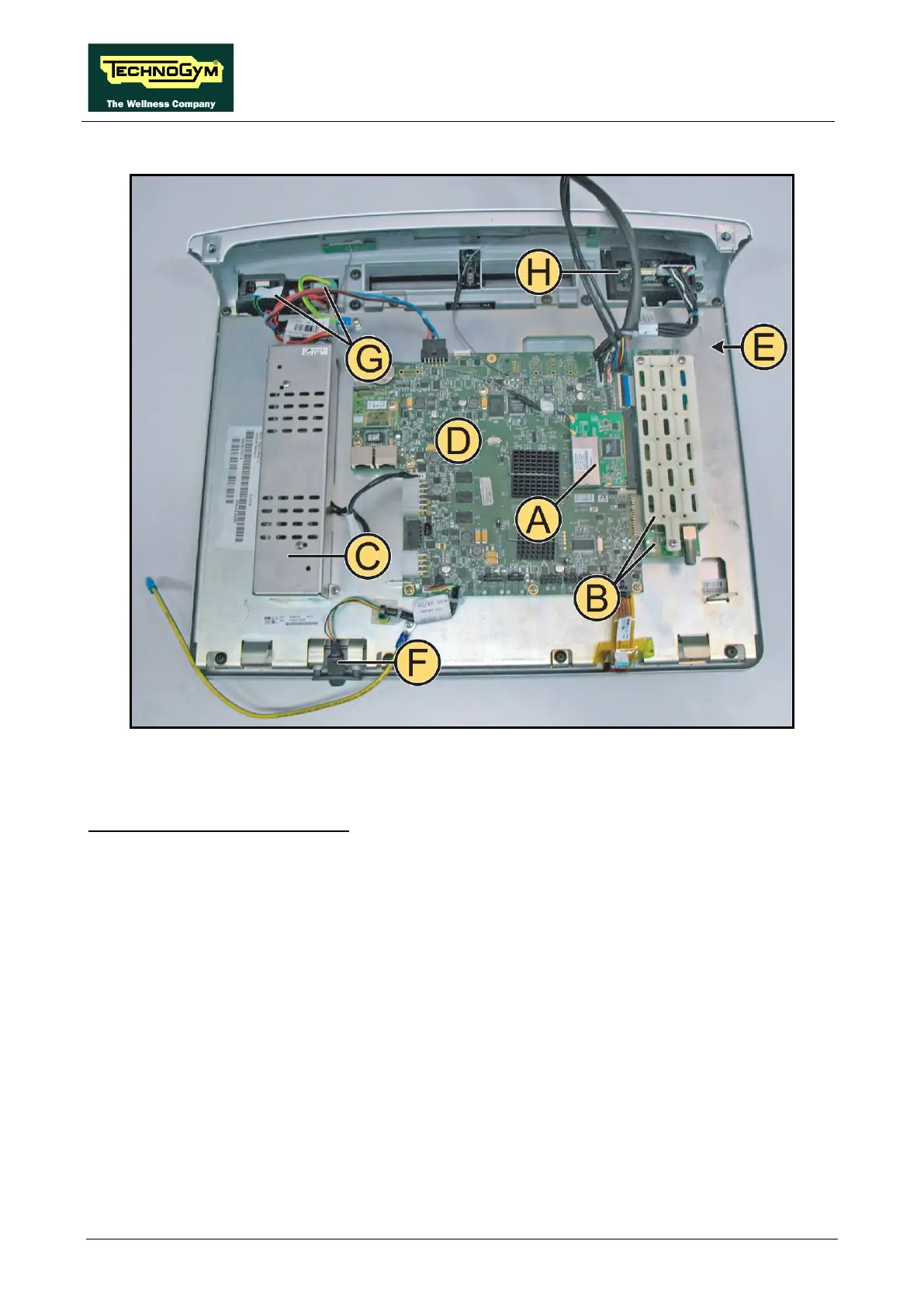

Figure 7-6
Carry out the procedure described in paragraph: 7.1.2. “VISIO Display”.
Place the display on a work bench.
It is now possible to remove the following components:
• Wireless Board (A);
• TUNER Board(B);
• LCD Inverter (C);
• CPU Board (D);
• LCD + Touch Screen (E);
• Headphone Jack (F);
• Dual TGS Reader + USB port (G);
• iPod Docking Station (H);
• Ventilation duct frontal plug;
• TGS + USB frontal plug.
