7.8. DISASSEMBLING THE HAND SENSOR

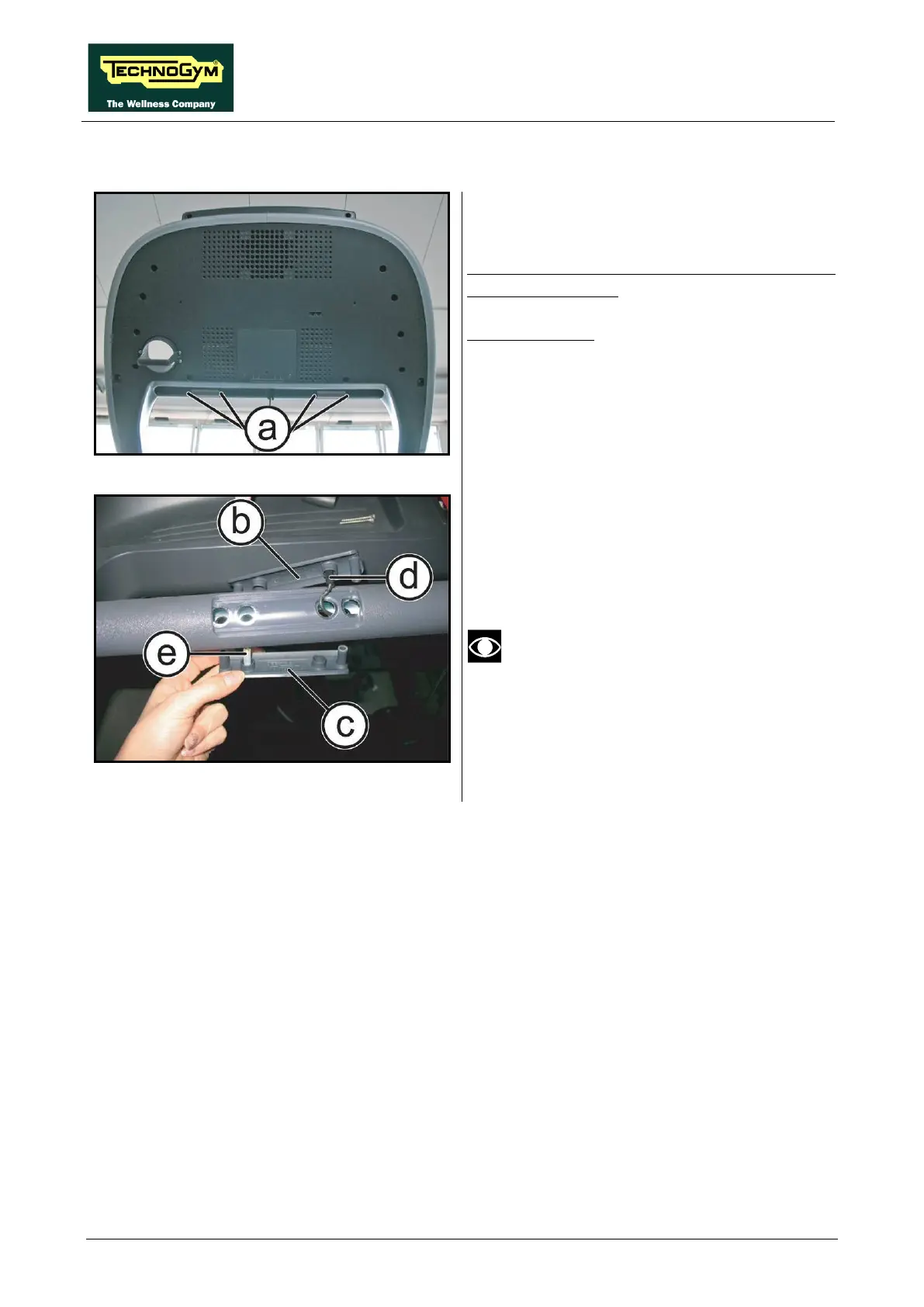

Figure 7-42
Turn off the machine and unplug the mains lead
from the wall outlet.
For each sensor:
1. Back off the 2 screws (a)
Phillips screwdriver.
Figure 7-43
2. Remove the upper sensor (b) and the lower
one (c) from the handlebar. Unplug the 2
faston (d) and (e).
3. Remove the 2 sensors.
During the reassembly: be careful to not
press the cables with
highlighted in the figure on the side.
To reassemble the sensors, carry out the above
steps in reverse order.
