RUN NOW Excite +: Technical Service guide - rev. 6.2
Page 7.54
7.22.4.2. B Typology

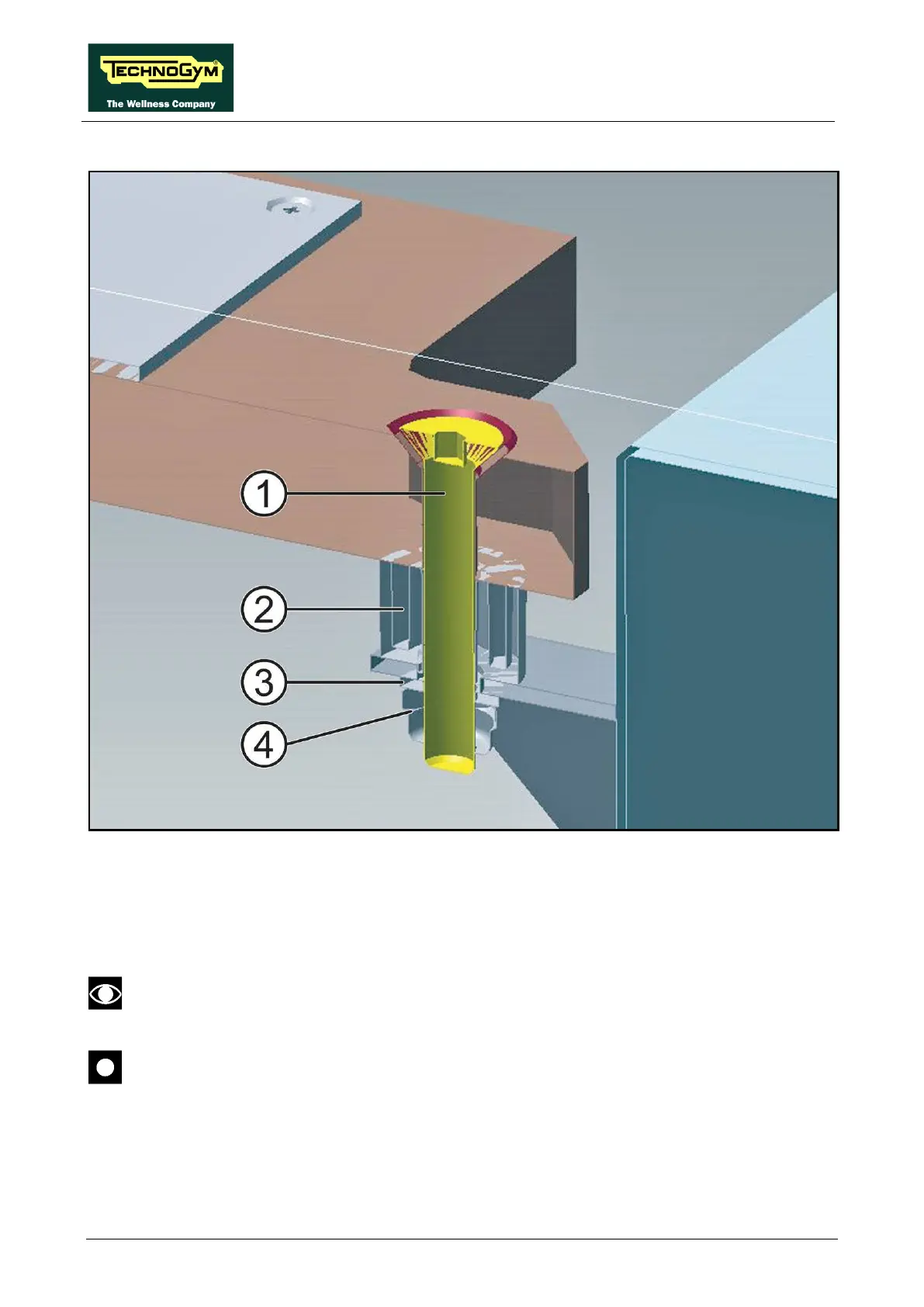

Figure 7.22-22
1. Back off the 2 screws (1) that fixing the running deck at the frame, using a 10mm hexagonal
wrench, locking down the nut on the opposite side using a 17mm wrench.
2. Remove the running deck and the belt.
During the reassembly respect the sequence indicated in the figure.
CAUTION: During the reassembly lock down the screw (1) using a torque wrench
settings on 30Nm.
