RUN NOW Excite +: Technical Service guide - rev. 6.2
Page 7.40

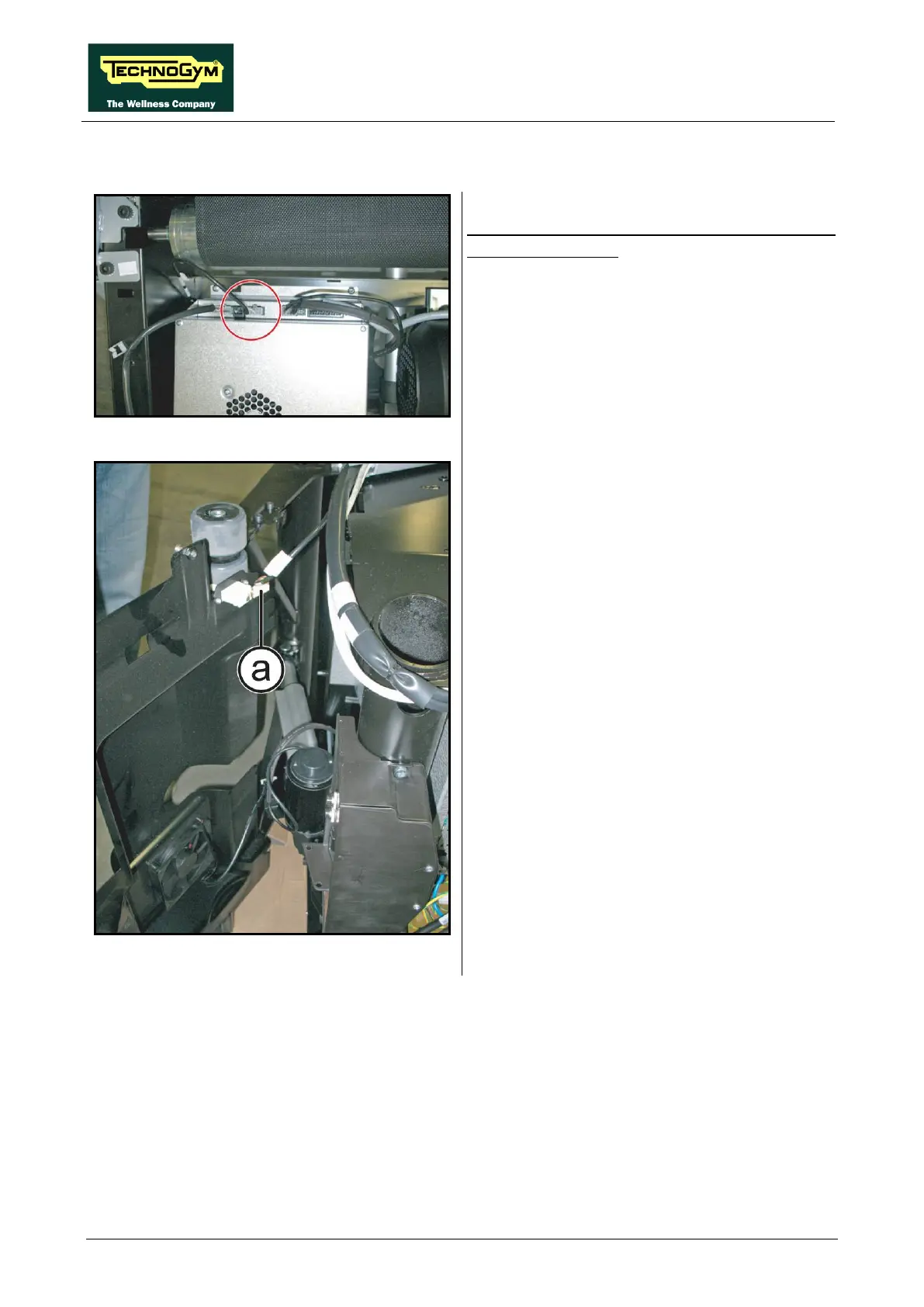

7.19. DISASSEMBLING THE LIMIT SWITCH
Figure 7-75
Turn off the machine and unplug the mains lead
from the wall outlet.
Carry out the procedure described in paragraph:
7.14. “Disassembling the Lower Kit guard”.
1. Unplug the connector
figure,
of the limit switch cable from the
Driver box.
Figure 7-76
2.
Press on both the sides of the limit switch
and pull it out from the lower side of the
guard.
3. Unplug the faston (a) if necessary.
To reassemble the Limit Switch, carry out the
above steps in reverse order.
Continued on following page…
