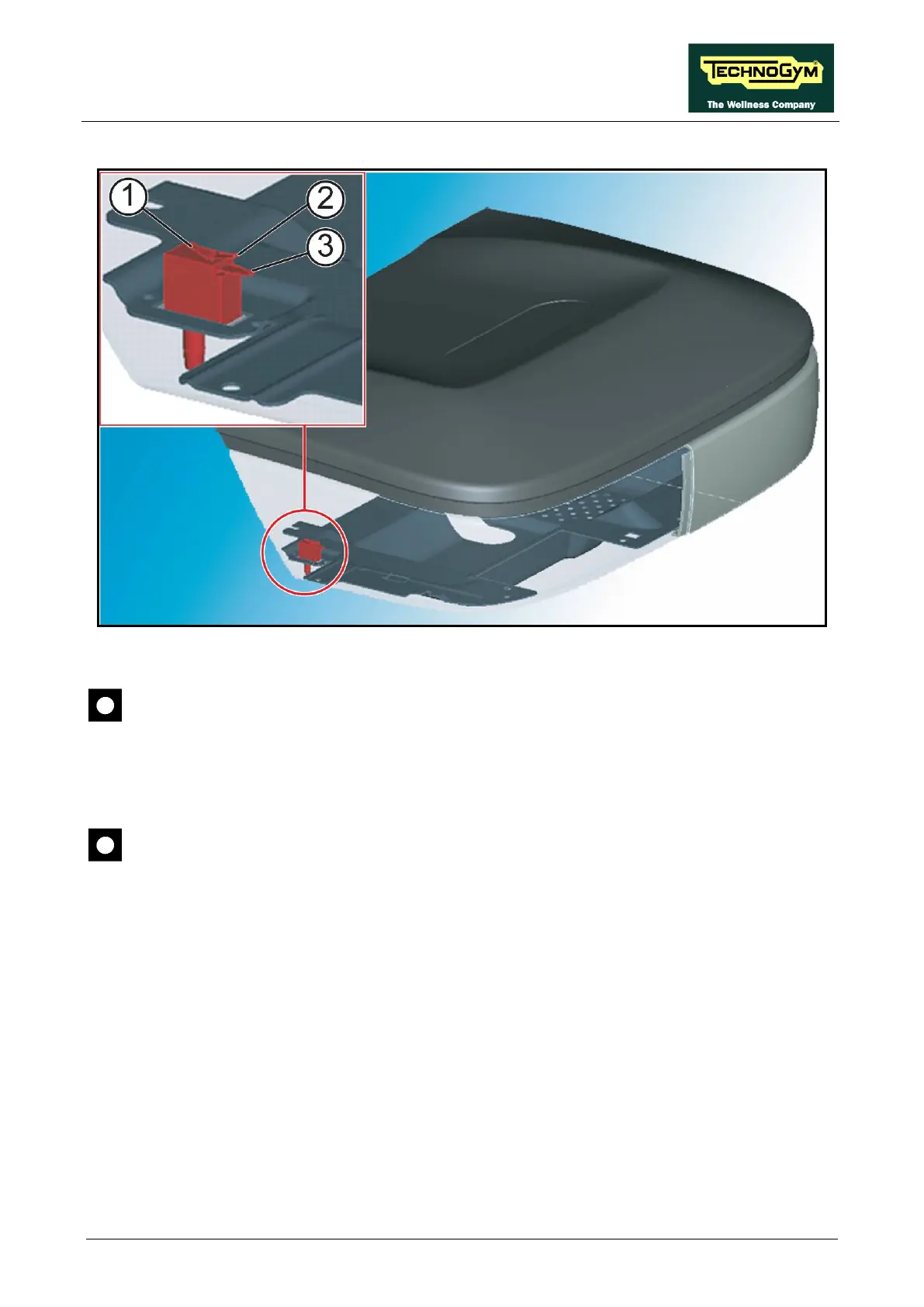

Figure 7-77
CAUTION: It is important to respect the orientation of the
limit switch during the
reassembly. The fast on (1) has to be oriented toward the REAR SIDE of the machine,
and the faston (2) and (3) have to face the FRONT SIDE of the machine,
as shown in the
figure above.
CAUTION: During the reassembly check the adjust of the limit micro switch, as detailed
at paragraphs: 8.3. “Adjusting the limit micro switch”.
