RUN NOW Excite +: Technical Service guide - rev. 6.2
Page 7.29
7.11.3. DISASSEMBLING THE JOYSTICK

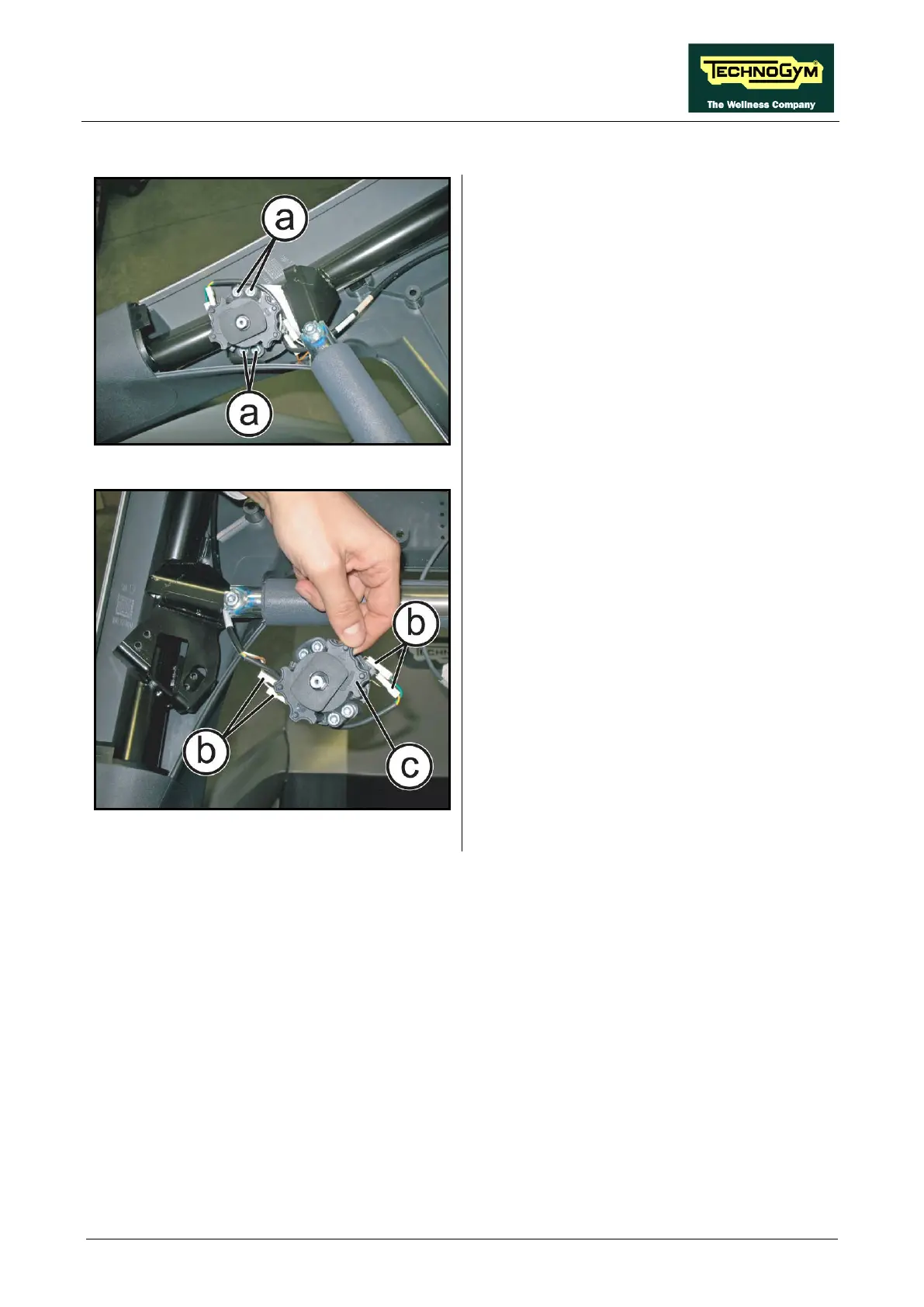

Figure 7-54
Carry out the procedure described in paragraph:
7.11.1. “Disassembling the upper dashboard”.
1. Back off the 4 screws (a) using a 5mm
hexagonal wrench.
Figure 7-55
2. Unplug the 4 faston (b).
3. Remove the Joystick group (c).
To reassemble the Joystick group, carry out the
above steps in reverse order.
