RUN NOW Excite +: Technical Service guide - rev. 6.2
Page 7.25

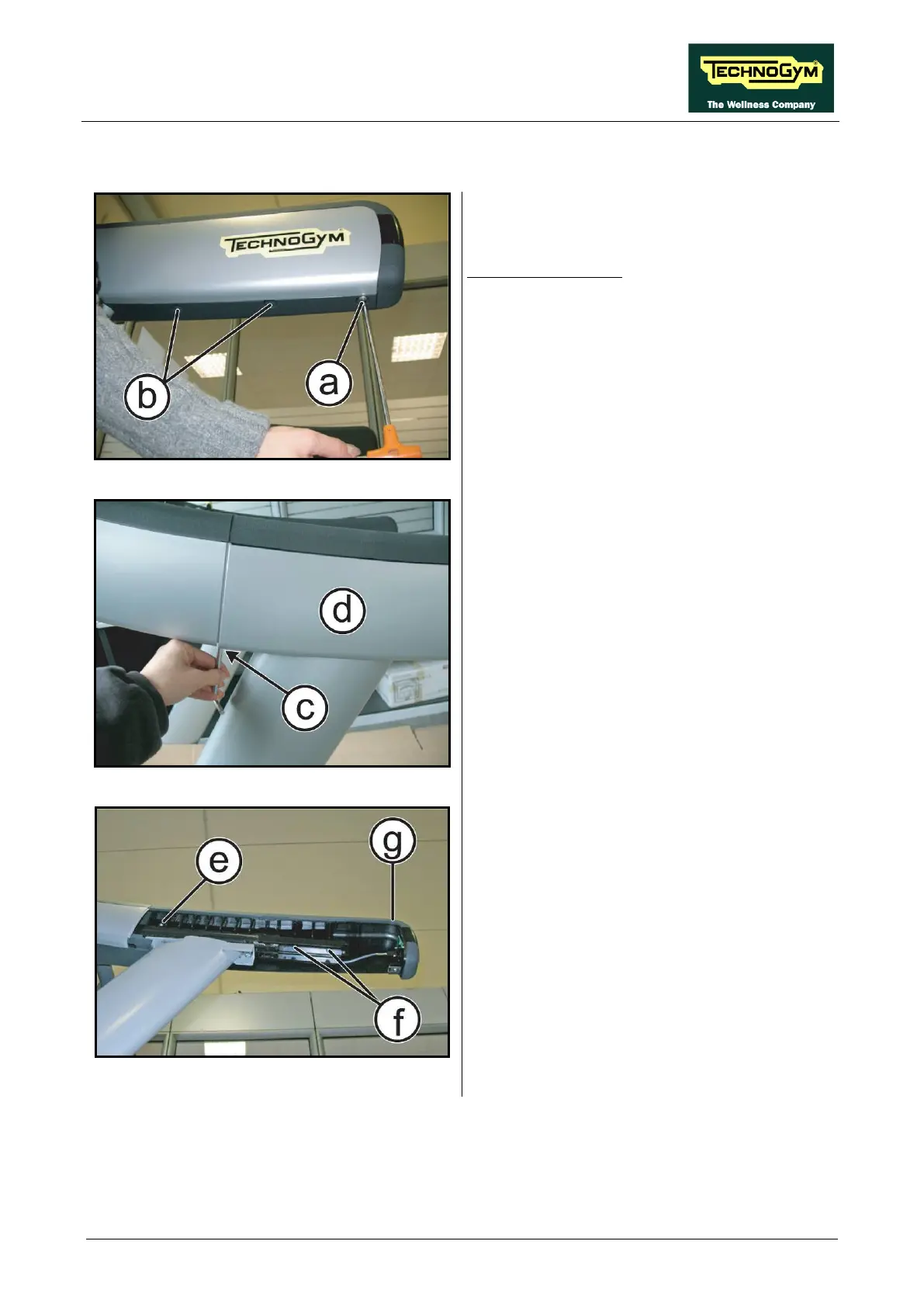

7.9. DISASSEMBLING THE LATERAL HANDLEBAR
Figure 7-44
For each handlebar:
1. Back off the screw (a) using a 4mm
hexagonal wrench.
2. Back off the 2 screws (b) using a 5mm
hexagonal wrench.
Figure 7-45
3. Back off the screw (c) using a 5mm
hexagonal wrench.
4. Remove the guards (d).
Figure 7-46
5. Back off the screw (e) and the 2 screws (f)
using a 5mm hexagonal wrench.
6. Remove the upper guard (g) if necessary.
To reassembly the Handlebar, carry out the
above steps in the reverse order.
Continued on following page…
→
