RUN NOW Excite +: Technical Service guide - rev. 6.2
Page 7.51
7.22.2. DISASSEMBLY THE DRIVEN ROLLER
In order to carry out these operations, it is necessary to slacken the tread-belt tension. If
the belt has to be used again, follow the instructions given in paragraph: 8.1.2.
“Tensioning a USED tread belt”.

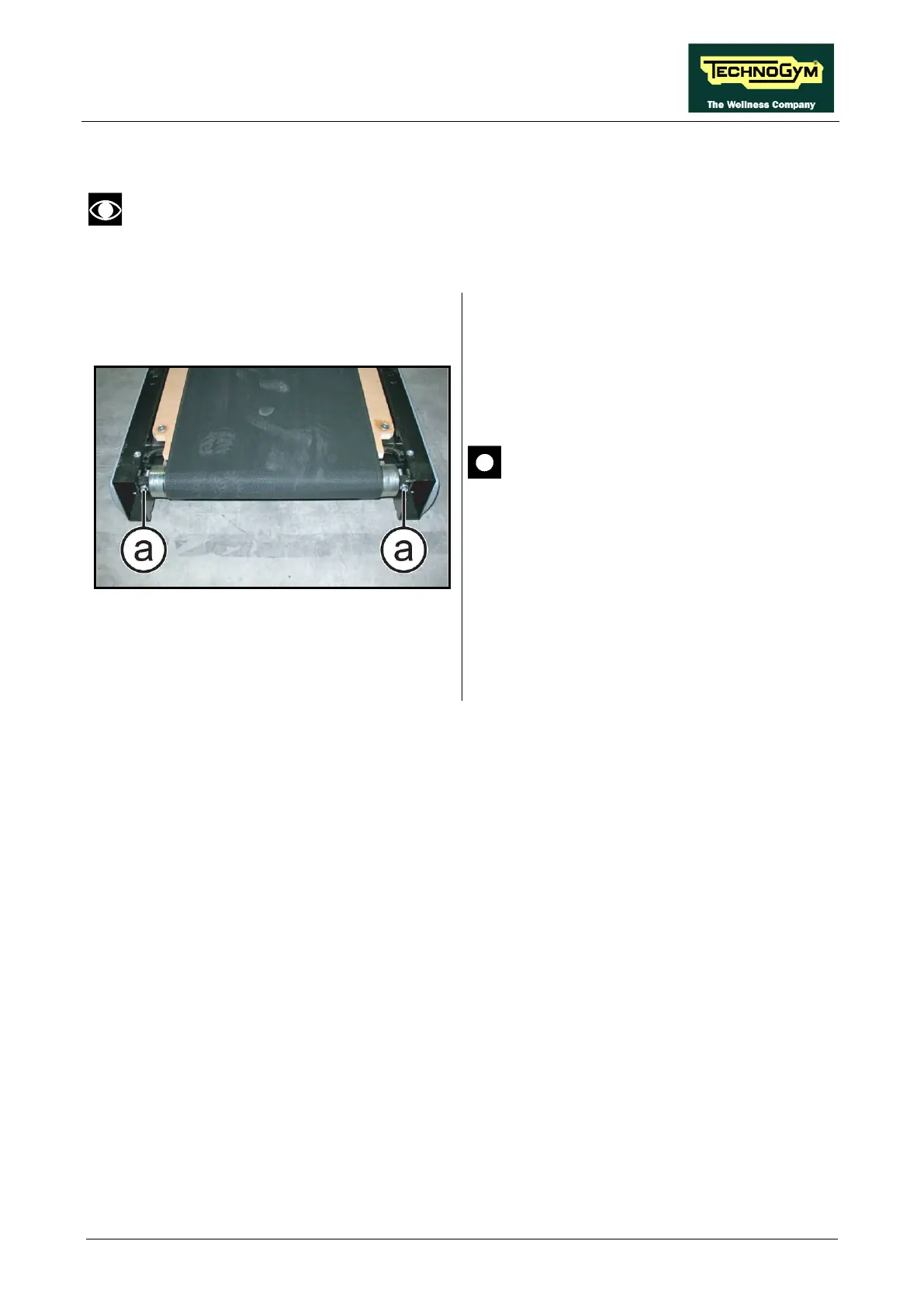

Figure 7-16
Carry out the procedure described in paragraph:
7.22.1. “Disassembling the footrest”.
1. Back off the 2 screws (a), on the rear roller of
the machine, using a 8mm hexagonal wrench.
CAUTION: Loosen the screws acting by
turns on both the sides of the machine so
that the rear roller is always parallel to
the front one and to avoid to damage the
roller bearings.
2. Remove the roller.
To reassemble the Driven Roller, carry out the
above steps in reverse order.
