7.22. DISASSEMBLING THE RUNNING DECK AND ITS
COMPONENTS
In order to carry out these operations, it is necessary to slacken the tread-belt tension. If
the belt has to be used again, follow the instructions given in paragraph: 8.1.2.
“Tensioning a USED tread belt”.
7.22.1. DISASSEMBLING THE FOOTREST

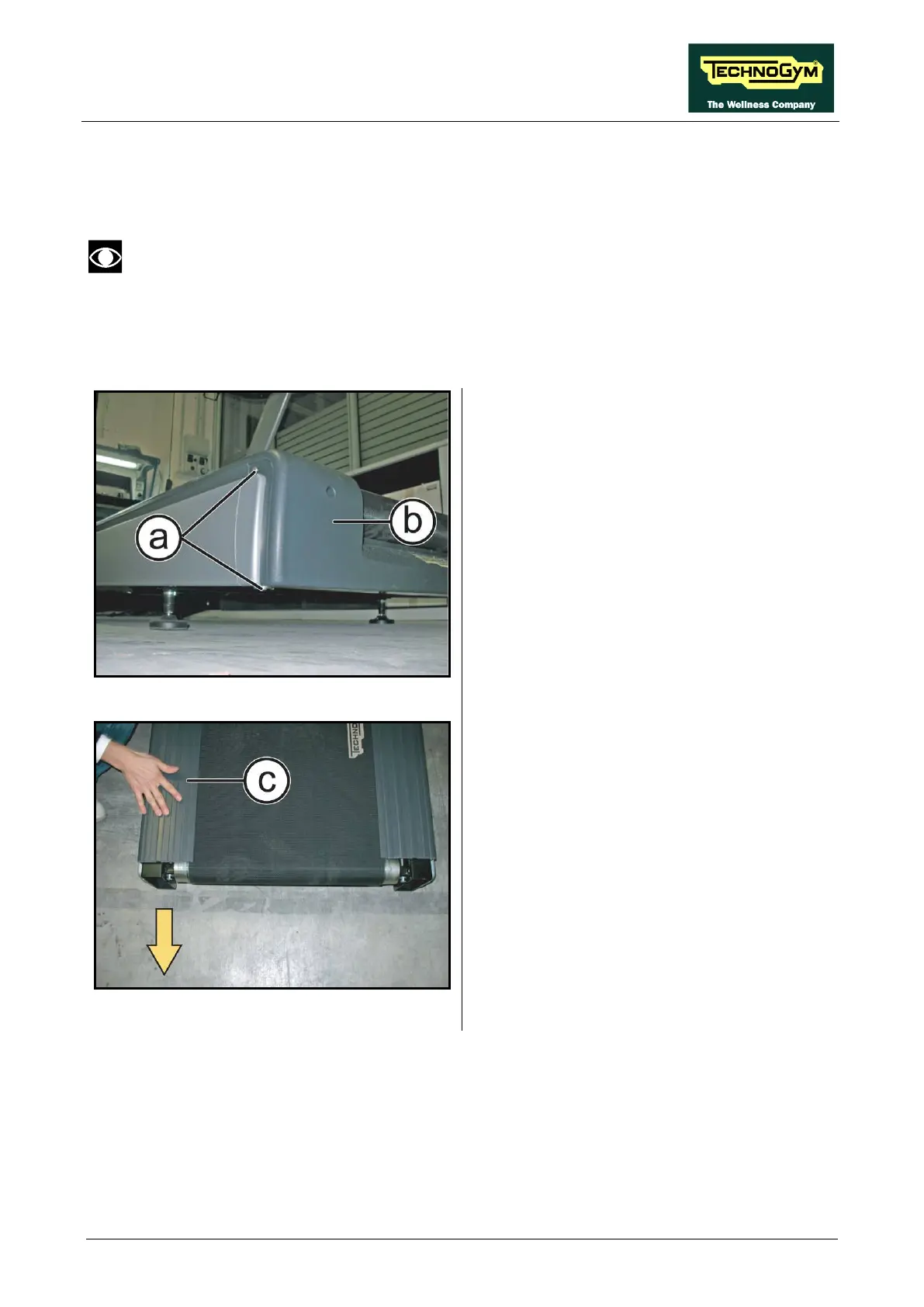

Figure 7-13
1. Back off 2 screws (a) using a 4mm
hexagonal wrench on both side.
2. Remove the rear guard (b).
Figure 7-14
3. Remove the footboard (c) by pulling it out
backward.
Continued on following page…
