7.22.5. DISASSEMBLING THE SHOCK ABSORBER
Carry out the procedure described in paragraph: 7.22.4. “Disassembling the running deck and
belt”.
7.22.5.1. A Typology

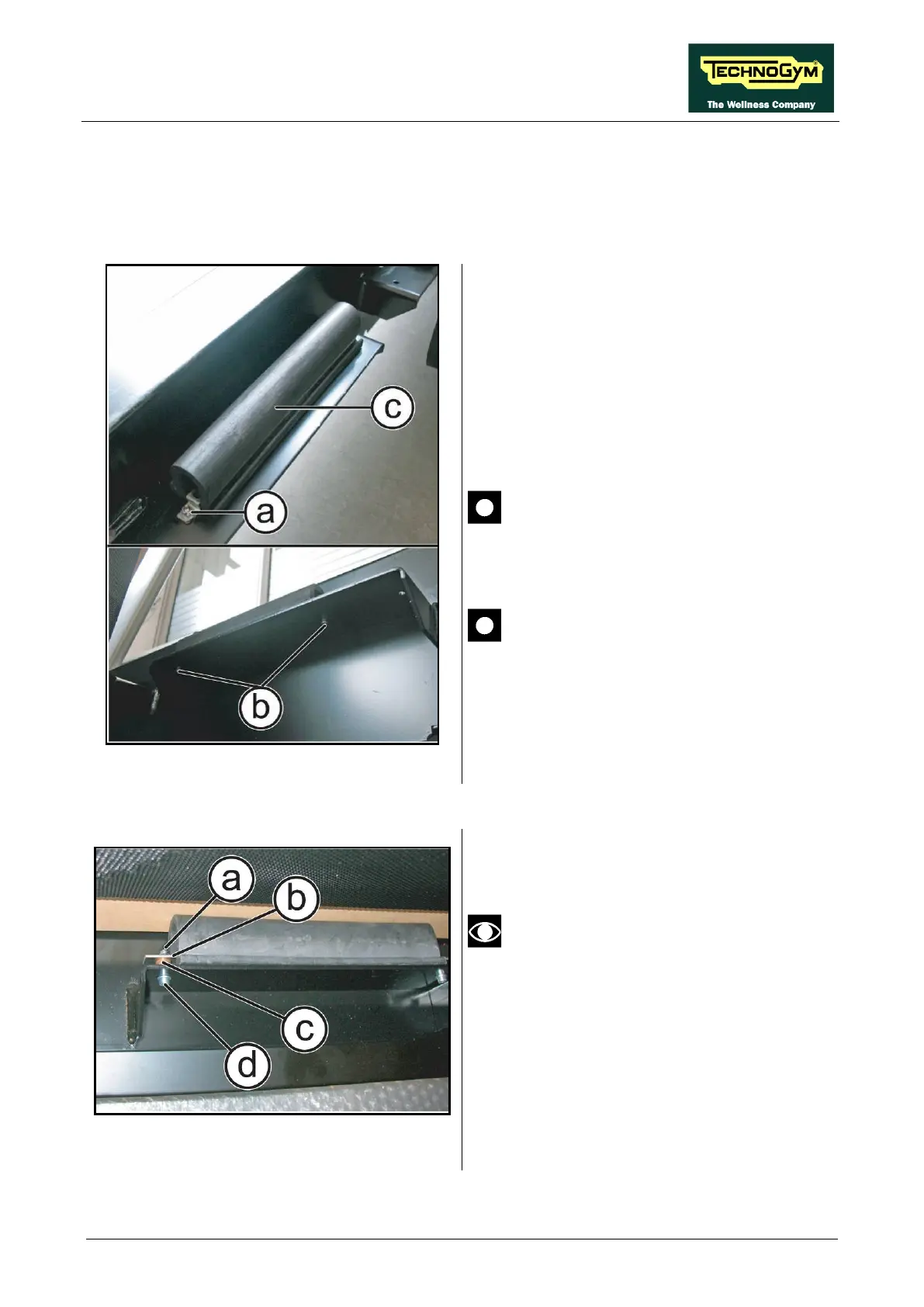

Figure 7-23
1. Block the nut (a) using a 7mm
wrench and
back off the 2 screws (b) using a 3mm
wrench.
2. Remove the shock absorber (c).
To reassemble the Shock absorber, carry out the
above steps in reverse order.
CAUTION: During the re
assembly lock
down the screws (b
) using a torque
wrench set for 3Nm.
CAUTION: At the end of the procedure,
check the tension and alignment of the
tread belt as detailed at paragraphs: 8.1.
“Tensioning the tread belt”
and in the
paragraph: 8.2. “
Centring the tread
belt”.
7.22.5.2. B Typology
Figure 7.22-24
1. Back off the 2 screws (n) using a 3mm
hexagonal wrench, docking down the nut (q)
on the opposite side.
During the reassembling follows the
sequence indicated:
• Screw (d),
• Bush (c),
• Plate (b),
• Locking nut (a).
To reassemble the various components, carry out
the above steps in reverse order.
