RUN NOW Excite +: Technical Service guide - rev. 6.2
Page 7.1
7. PART DISASSEMBLY
7.1. DISASSEMBLING THE DISPLAY
7.1.1. LED DISPLAY

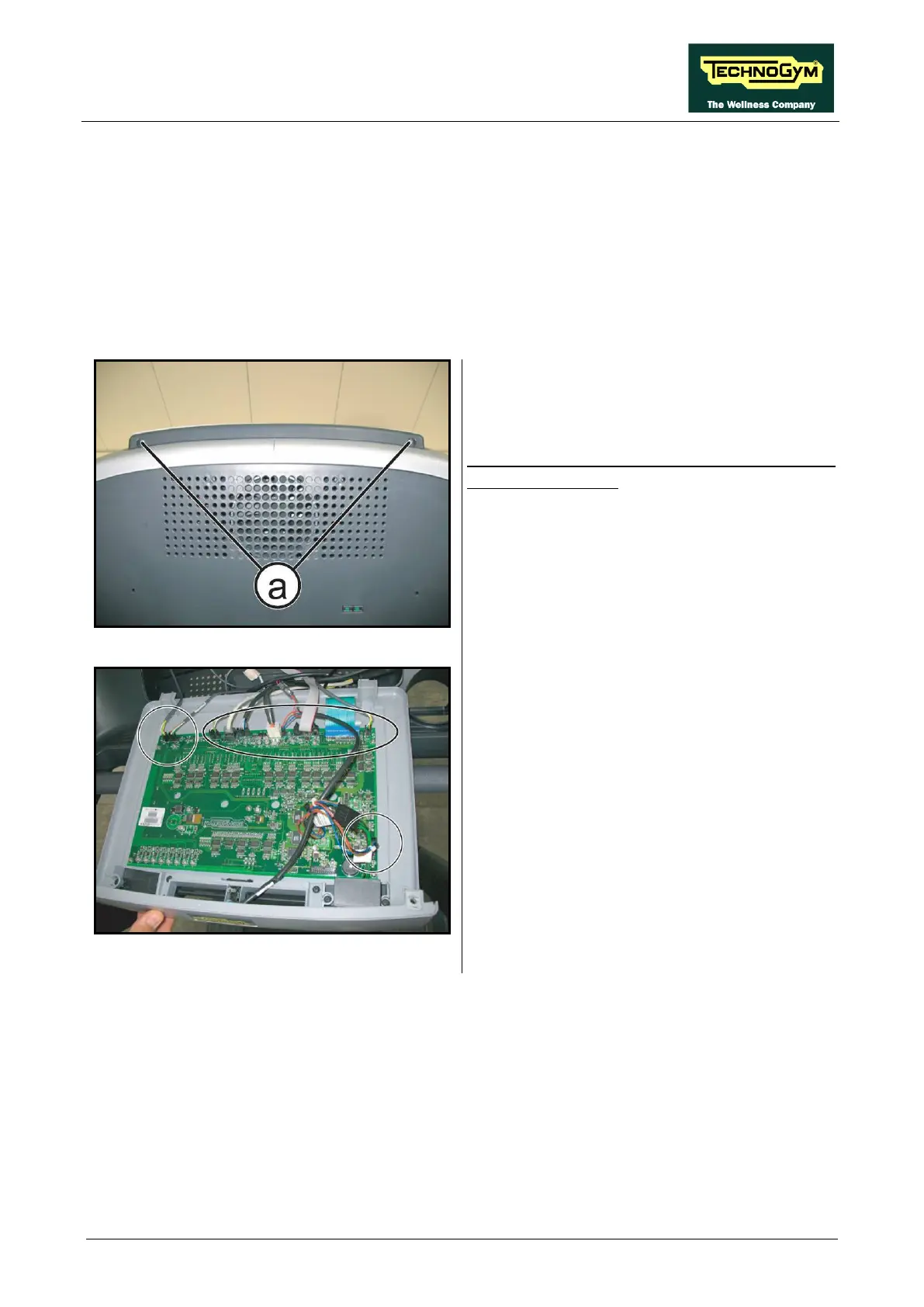

Figure 7-1
Turn off the machine and unplug the mains lead
from the wall outlet.
1. Back off the 2 screws (a) using a 4mm
hexagonal wrench.
Figure 7-2
2. Open the Display,
support it as indicated in
the picture.
3.
Disconnect the connectors highlight in the
figure at the side.
4. Remove the Display.
To reassembly the Display, follows the above
steps in the reverse order.
