RUN NOW Excite +: Technical Service guide - rev. 6.2
Page 7.31
7.13. DISASSEMBLING THE LATERAL UPRIGHTS

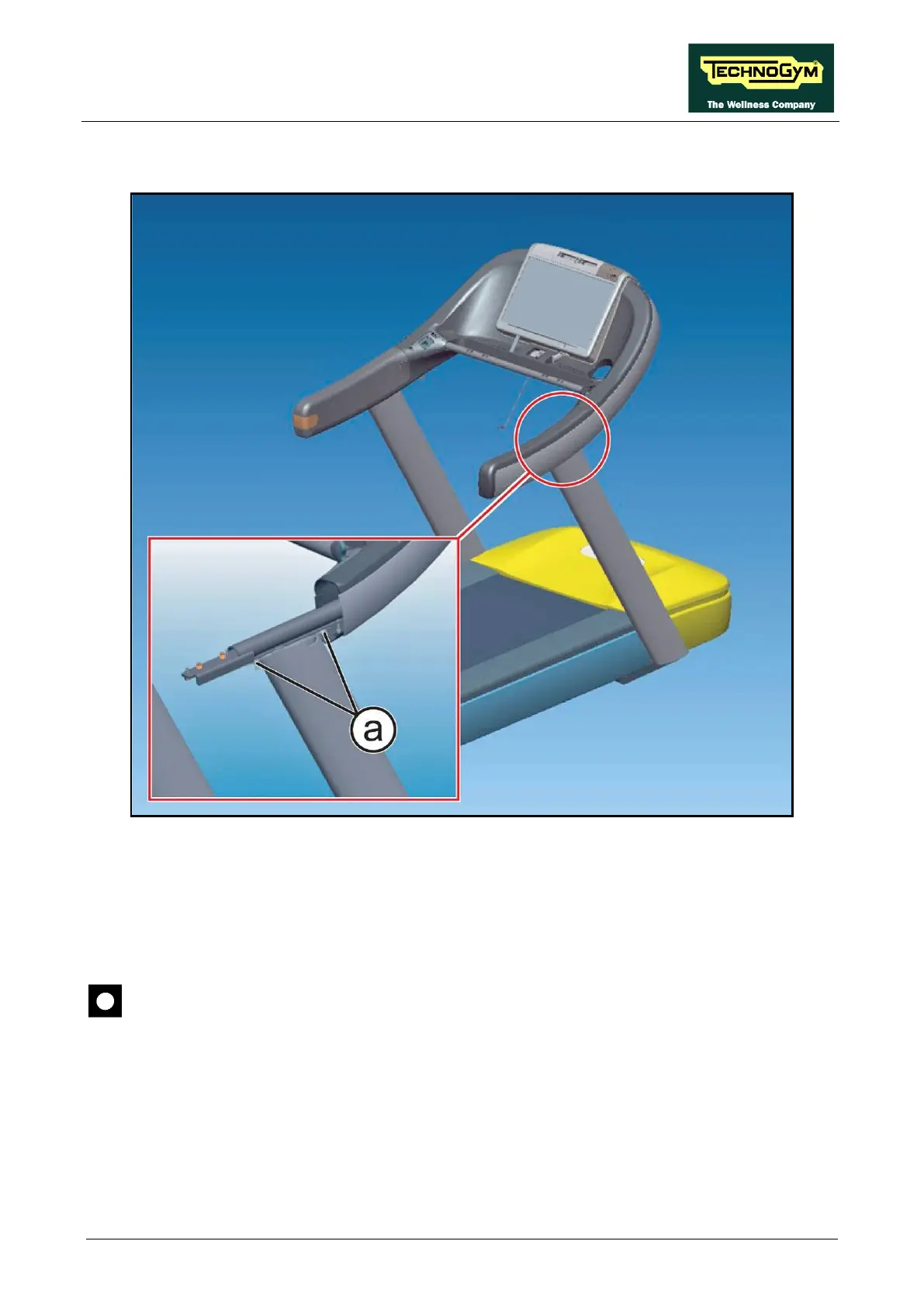

Figure 7-57
Carry out the procedure described in paragraph: 7.9. “Disassembling the lateral handlebar”.
1. Back off the 2 screws (a) using a 8mm hexagonal wrench, on both side
CAUTION: During the reassembly lock down the screws (a) using a torque wrench set
for 30Nm
2. Remove completely the dashboard group from the equipment.
Continued on following page…
