7.15. DISASSEMBLING THE LOWER KIT
7.15.1. DISASSEMBLING THE ALE DRIVER

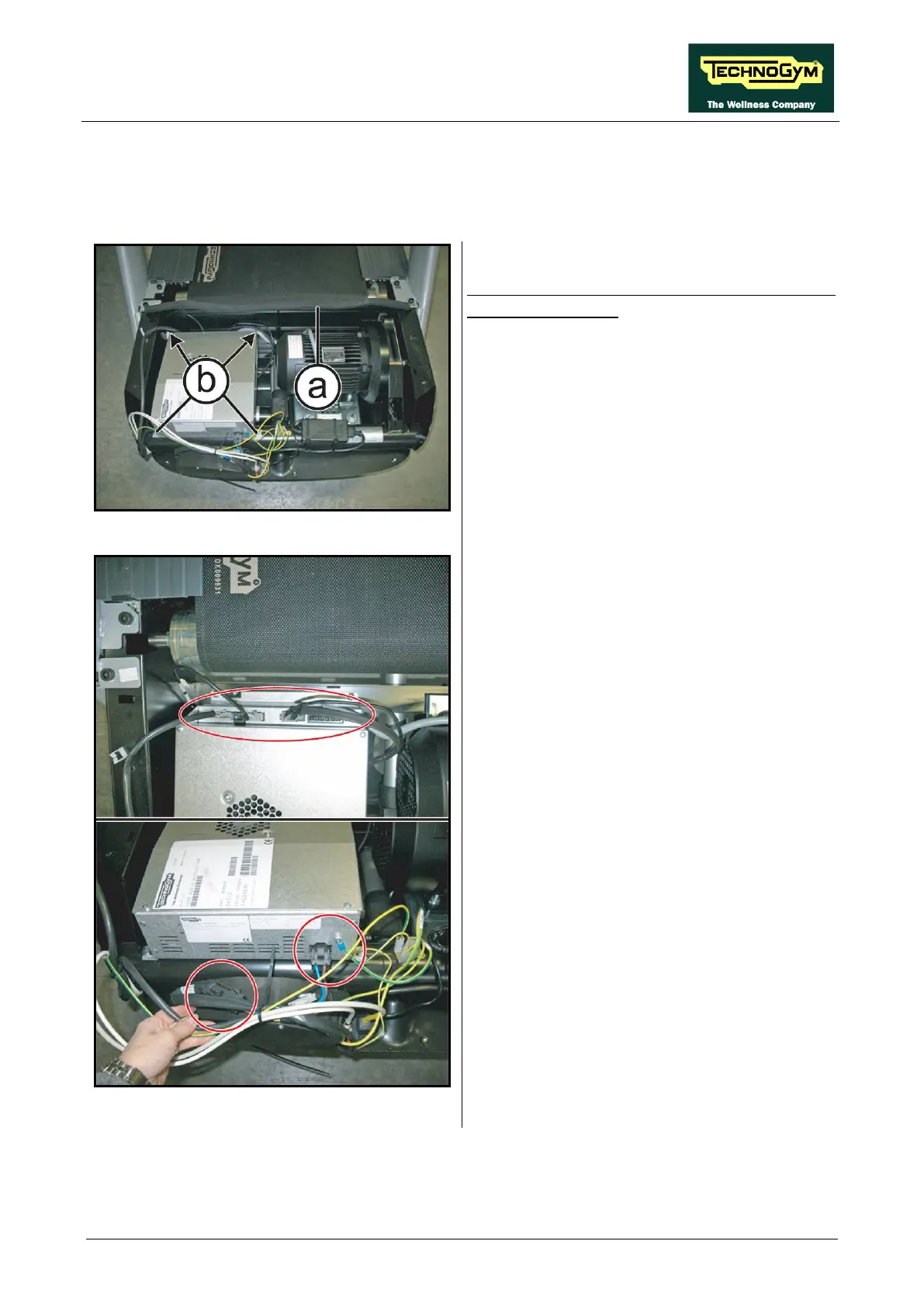

Figure 7-64
Turn off the machine and unplug the m
ains lead
from the wall outlet.
Carry out the procedure described in paragraph:
7.14.1. “Disassembling the upper guard”.
1. Remove the dust protection (a).
2. Back off the 4 screws (b)
using a medium
Phillips screwdriver.
Figure 7-65
3. Unplug the connectors highlighted
in the
figure:
• Power Supply cable;
• Cable connecting High Kit – Lower Kit;
• Limit switch cable;
• Fan cable;
• Ground connection cable;
• Tread belt motor cable;
• Up-Down motor cable.
4. Remove the Driver Box.
To reassemble the Lower Kit, carry out the
above steps in reverse order.
