RUN NOW Excite +: Technical Service guide - rev. 6.2
Page 7.5
7.2.2.1. Wireless board (A)

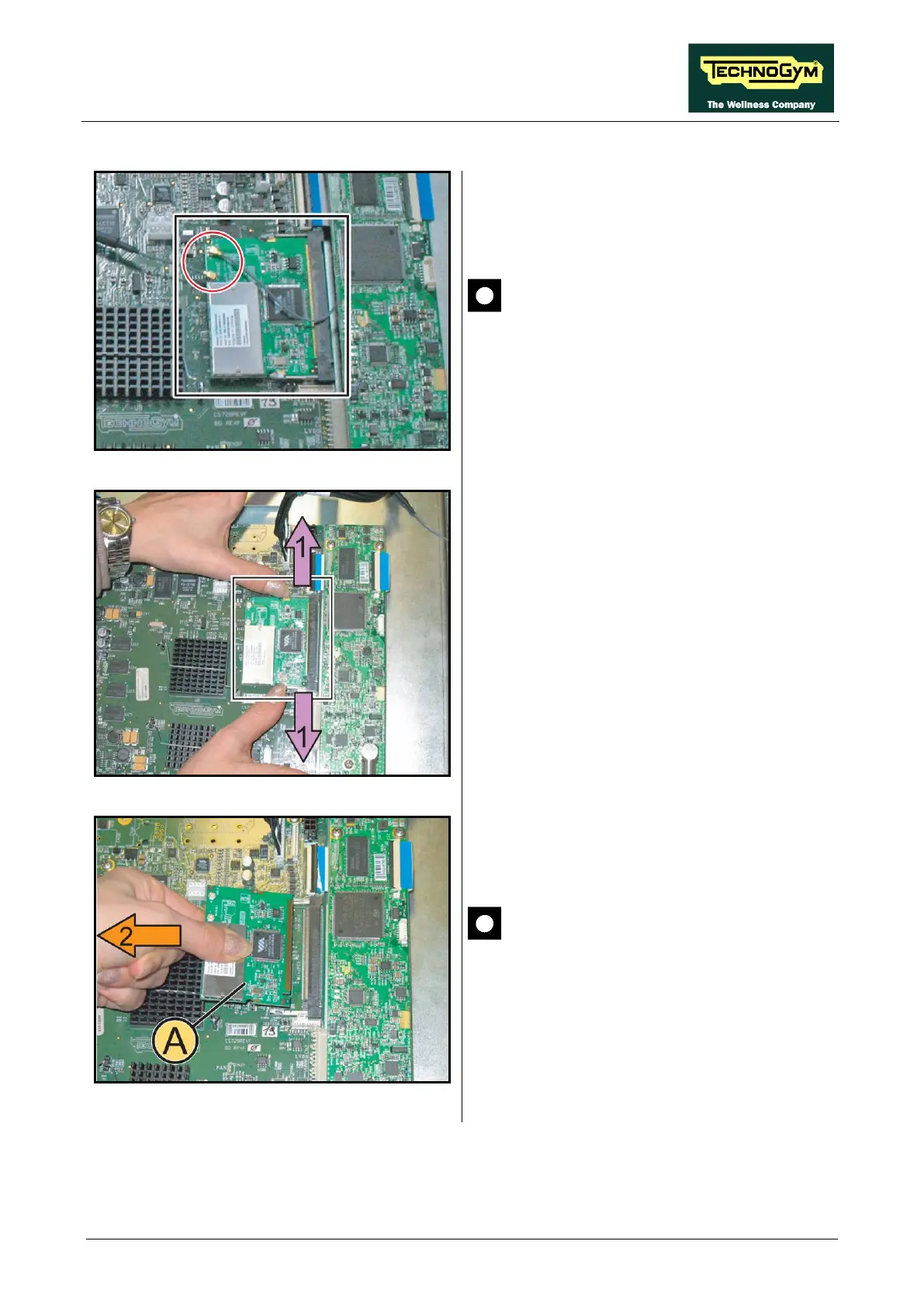

Figure 7.2-7
1.
Unplug the 2 antenna connectors of the
wireless board, highlighted in the figure.
CAUT
ION: Pay particular attention to
the wireless antenna cables and
connectors, because extremely sensitive,
moreover in case of disassembly, it is
important to follow the cable routing as
shown in Figure 7.2-10.
Figure 7.2-8
2.
Push simultaneously the 2 side tabs outward,
in the direction of the purple arrows (1)
. The
Wireless Board will automatically lift up
Figure 7.2-9
3. Remove the Wireless Board (A)
in the
direction of the orange arrow (2), as shown in
the figure at the side.
CAUTION: During the reassembly,
mount the antennas of Figure 7.2-7 on
Wireless Board and after the Boa
rd in
its housing; so not press on the CPU
circuits.
To reassemble the Wireless Board, follows the
above steps in the reverse order.
