RUN NOW Excite +: Technical Service guide - rev. 6.2
Page 8.4
8.3. ADJUSTING THE LIMIT MICRO SWITCH

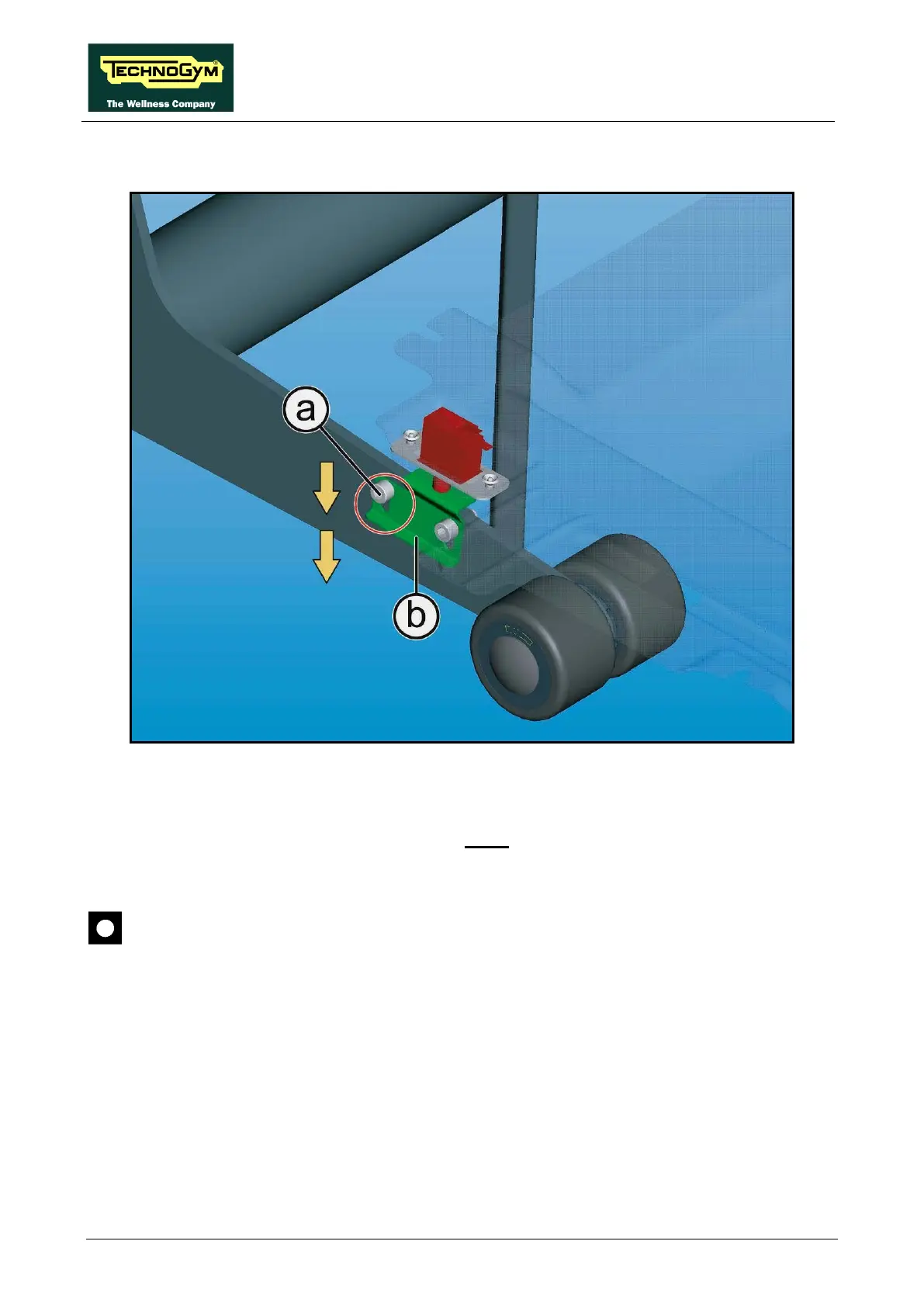

Figure 8-2
1. Loosen the 2 screws (a) that fixing the limit switch stop plate.
2. Adjust the position of the plate (b) completely down, as indicated by the yellow arrows above.
3. Finally, lock down the 2 screws (a) previously loosened.
CAUTION: During the reassembly lock down the screws (a) using a torque wrench set
for 14Nm.
