Technogym RUN NOW EXCITE + - Ventilation Duct Frontal Plug

RUN NOW Excite +: Technical Service guide - rev. 6.2
Page 7.15
7.2.2.10. Ventilation duct frontal plug

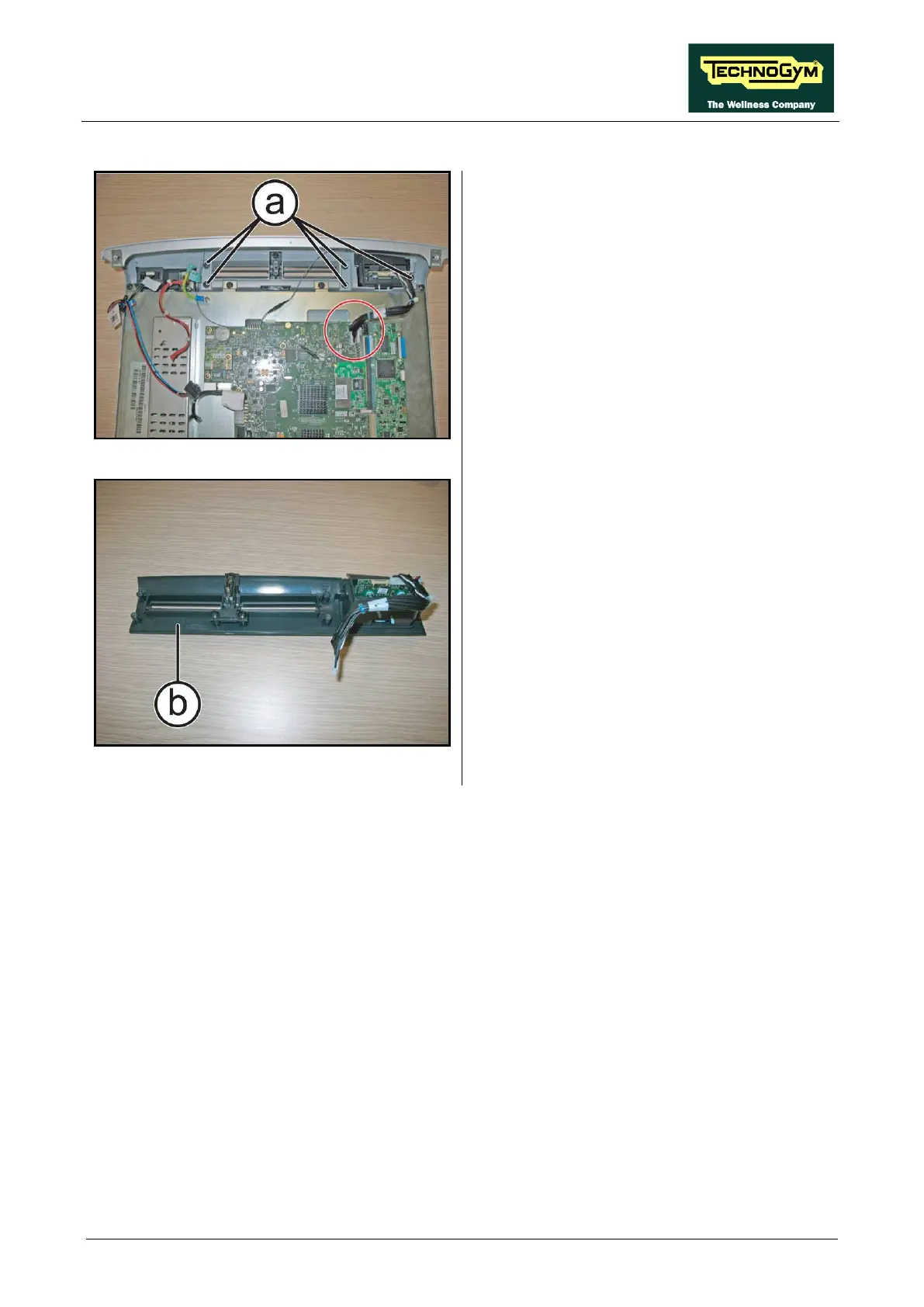

Figure 7-26
1. Back off the 5 screws (a)
using a medium
Phillips screwdriver.
Figure 7-27
2. Remove the ventilation duct group (b).
To reassembly the ventilation duct frontal plug,
follows the above steps in the reverse order.
