7.7. DISASSEMBLING THE FAN

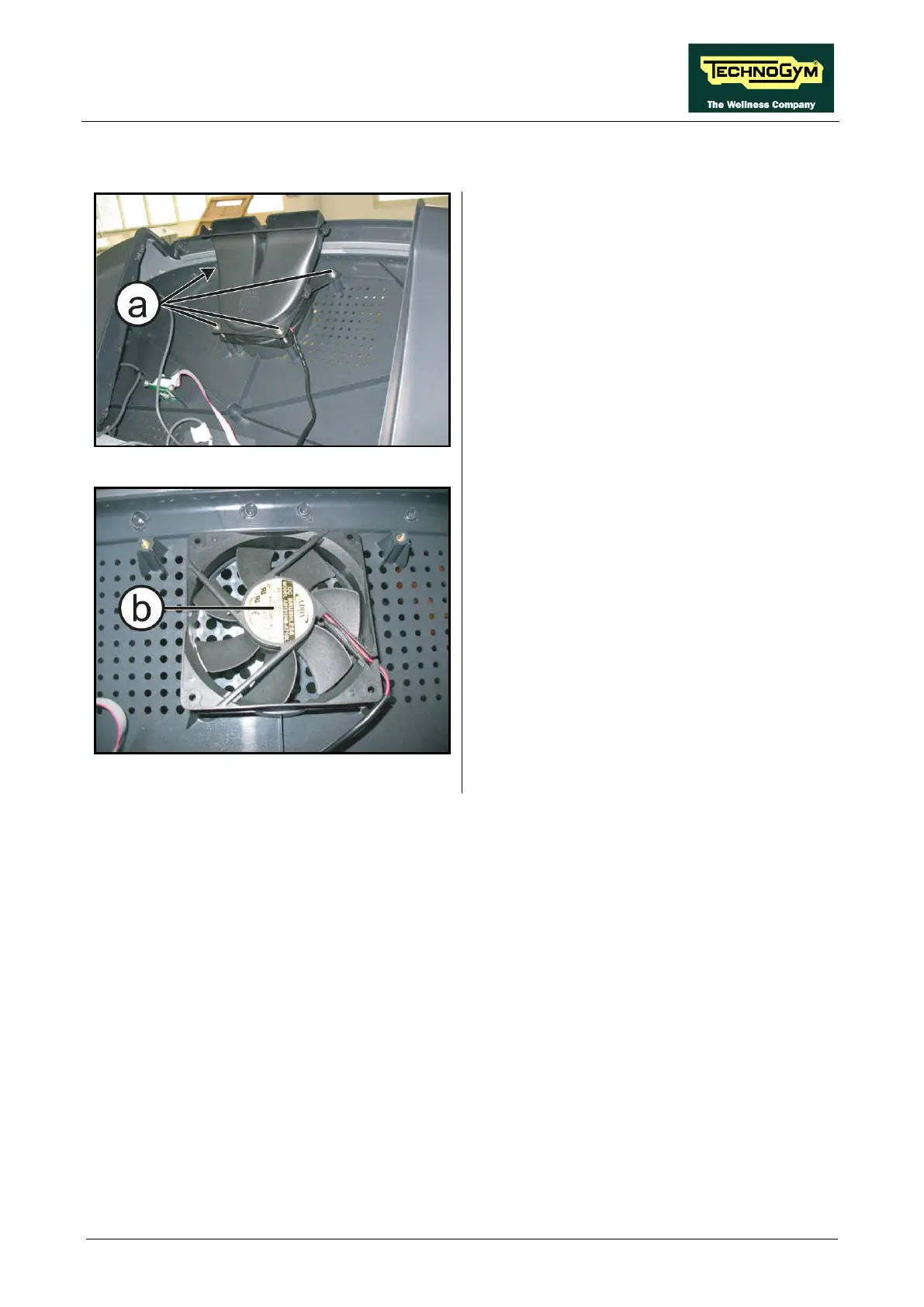

Figure 7-40
Carry out the procedure described in paragraph:
7.1. “Disassembling the display”.
1. Back off the 4 screws (a) using a 3mm
hexagonal wrench.
2. Remove the fan guard.
Figure 7-41
3. Remove the fan from its fixing housing.
To reassemble the Fan,
carry out the above steps in reverse order so.
