7.21. DISASSEMBLING THE AUTOTRANSFORMER (V. 110V)
CAUTION: On machines produced WITHOUT autotransformer, not exist any upgrade
kit and it is not possible to upgrade with Autotransformer for reasons of certification,
standards and safety. The machines burn with Autotransformer with this typology from
the production from Technogym ®.
Figure 7.21-1
Turn off the machine and unplug the mains lead from the wall outlet.
Carry out the procedure described in paragraph: 7.14.1. “Disassembling the upper guard”.

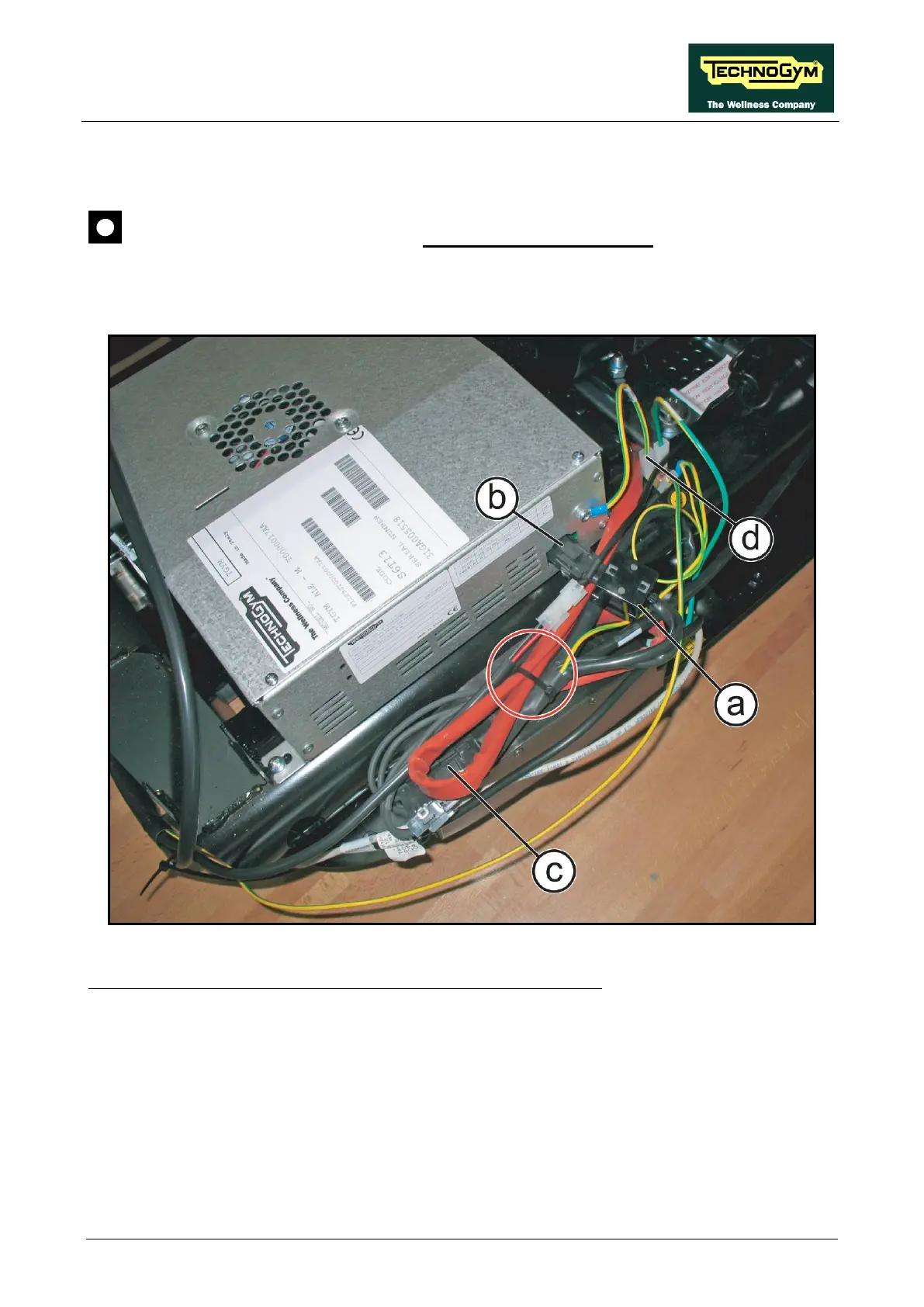

1. Cut the cable-tie that fixes the power cables and ground, as highlight in the figure at the side.
2. Remove the ferrite (a) and disconnect the male connector (b) and the female connector (c) of
autotransformer.
3. Disconnect the ground cable (d).
Continued on following page…
