RUN NOW Excite +: Technical Service guide - rev. 6.2
Page 7.44

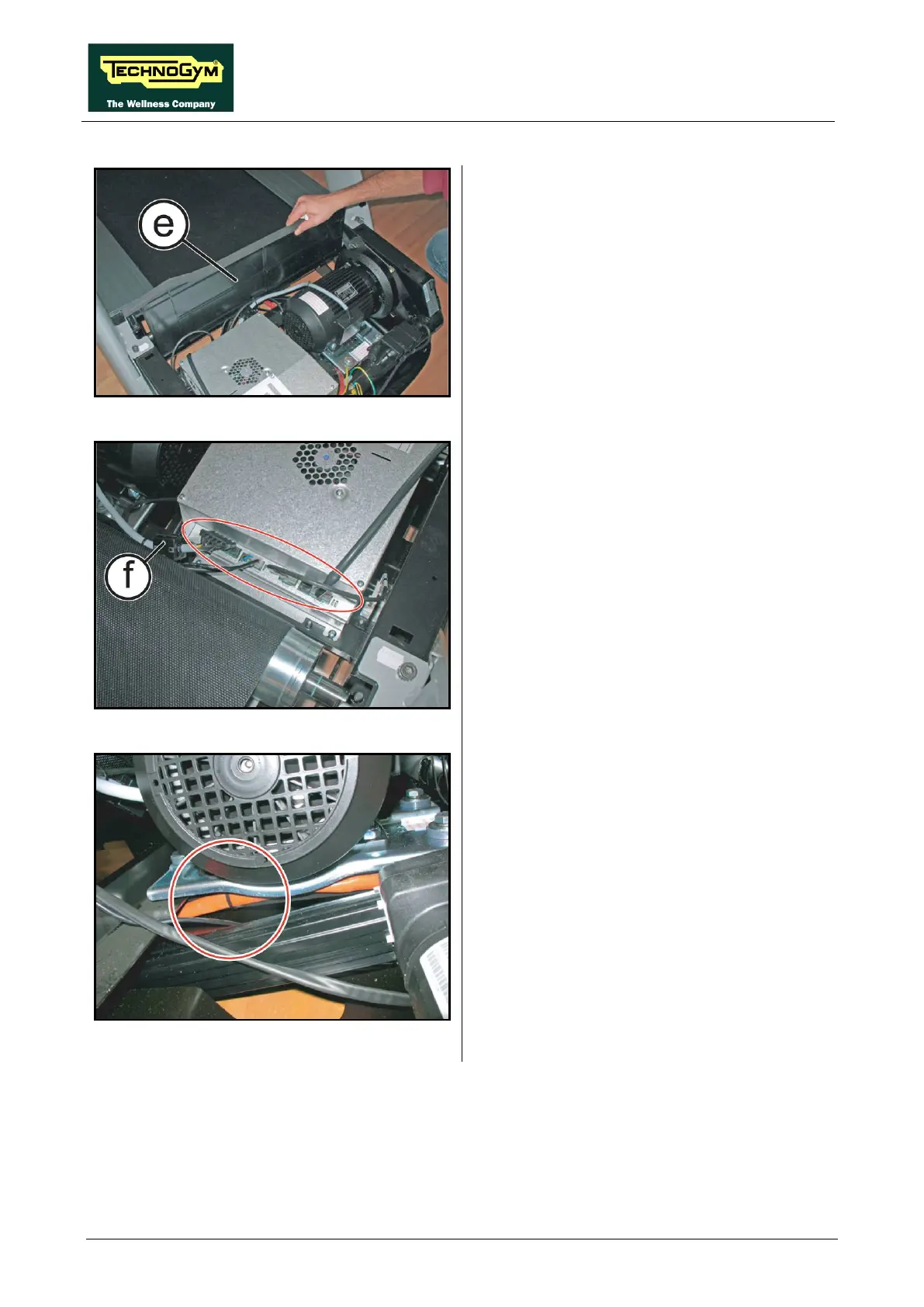

Figure 7.21-2
4. Remove the dust-guard (e).
Figure 7.21-3
5. Remove the ferrite (f)
from the motor cable
and disconnect the other cables,
highlight in
the figure, from the autotransformer.
Carry out the procedure described in paragraph:
7.15. “Disassembling the Lower Kit”.
Figure 7.21-4
6. Cut the cable-
tie highlight in the figure at the
side, paying attention to
not damage the
autotransformer cable.
Continued on following page…
