7.5. DISASSEMBLING THE EMERGENCY BUTTON

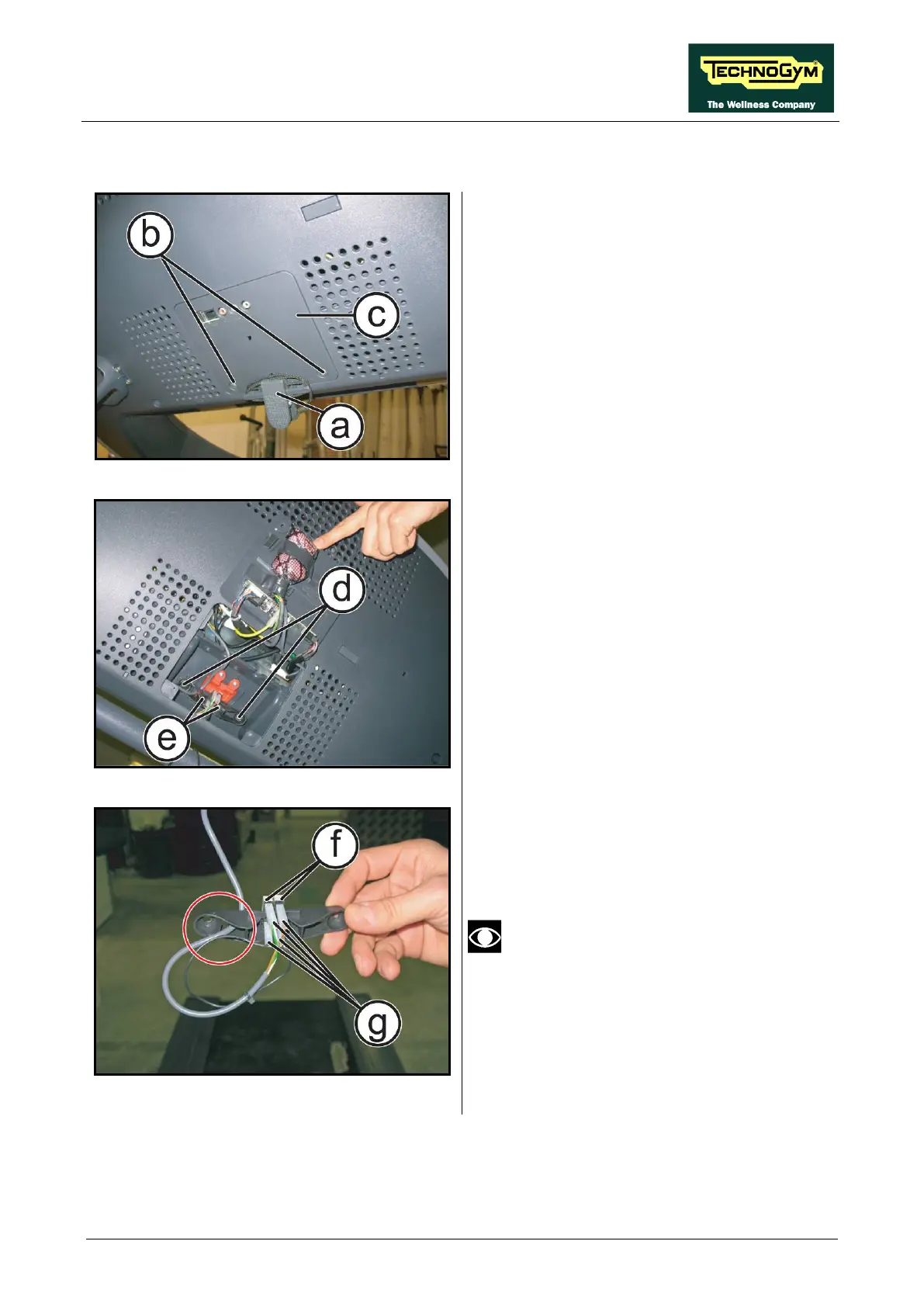

Figure 7-34
1. Release the emergency cable (a)
from its
housing.
2. Back off the 2 screws (b)
using a medium
Phillips screwdriver.
3. Remove the inspection plug (c).
Figure 7-35
4. Back off the 2 screws (d)
using a medium
Phillips screwdriver.
5. Back off the 2 screws (e)
using a small
Phillips screwdriver.
6. Remove the emergency button.
Figure 7-36
7. Now it’s possible to act on the micro switch
(f) or on the faston (g).
During the reassembly,
respect the
cables routing, as shown in the figure.
To reassemble the Emergency Button,
carry out the above steps in reverse order.
