7.15.2. DISASSEMBLING THE AT-UL DRIVER

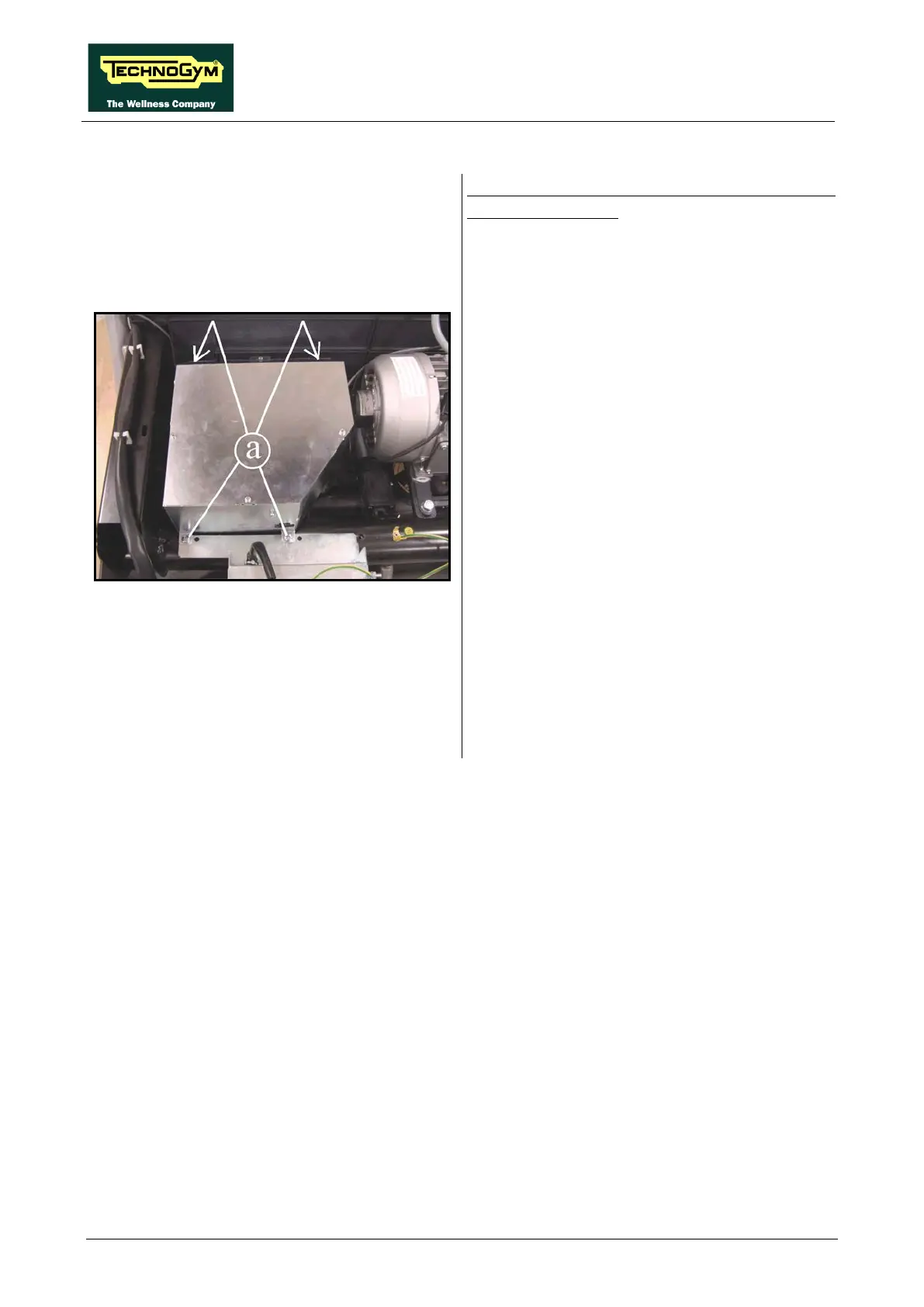

Figure 7-66
Turn off the machine and unplug the mains lead
from the wall outlet.
Carry out the procedure described in paragraph:
7.14.1. “Disassembling the upper guard”.
1.
Disconnect the cables entering the Driver
box:
• Power Supply cable,
• Cable connecting High Kit – Lower Kit,
• Limit switch cable;
• Fan cable;
• Ground connection cable,
• Tread belt motor cable,
• Up-Down motor cable.
2. Back off the 4 screws (a)
using a medium
Phillips Screwdriver.
5. Remove the Driver box.
To reassemble the Lower Kit, carry out the
above steps in reverse order.
