7.14.2. DISASSEMBLING THE LOWER GUARD

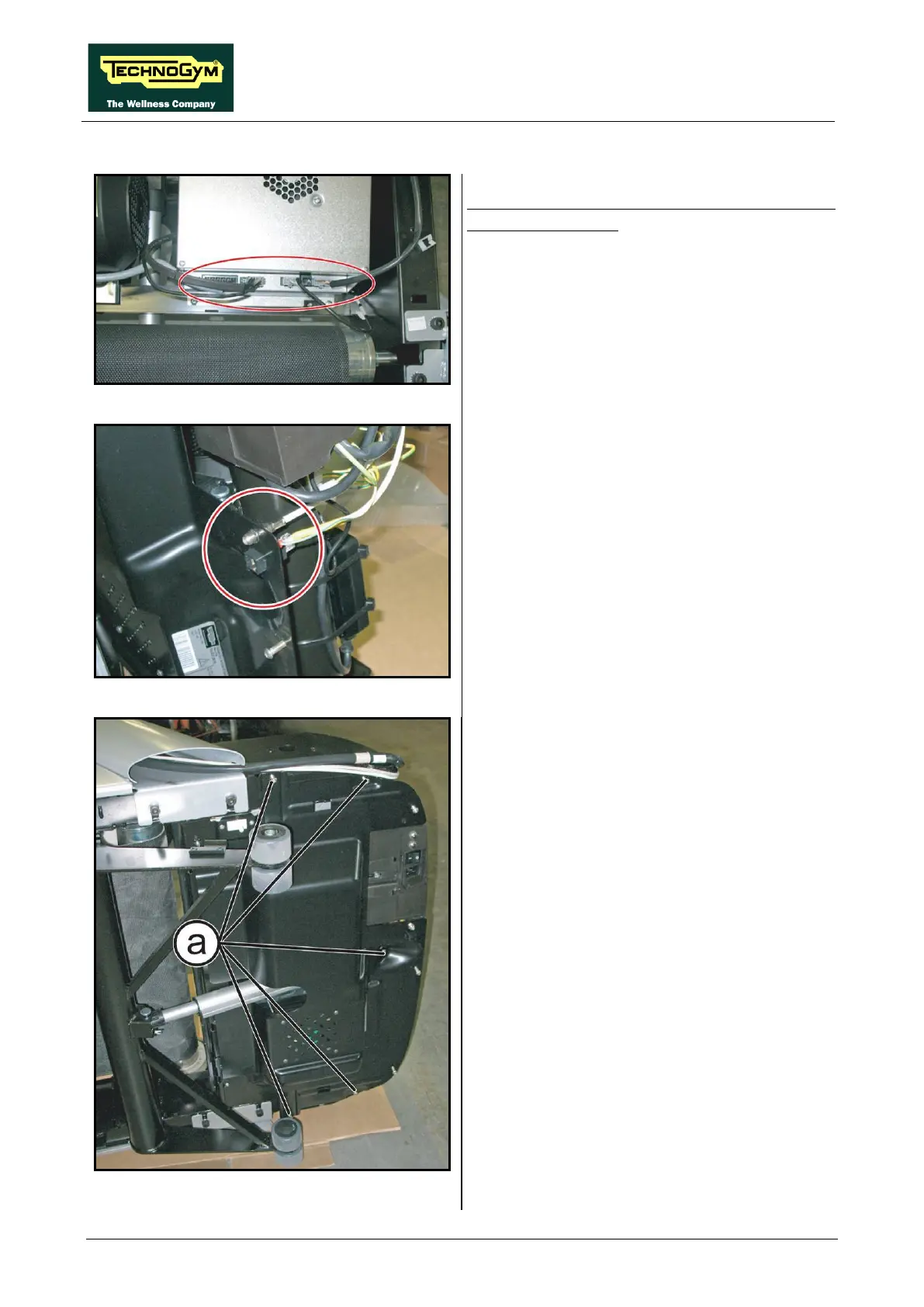

Figure 7-61
Turn off the machine and unplug the mains lead
from the wall outlet.
Carry out the procedure described in paragraph:
7.14.1. “Disassembling the upper guard”.
1. Unplug the micro connector
and the Fan
connector highlighted at the side
from the
Driver box.
Figure 7-62
2. To make the procedure
easier, turn the
machine over on one side.
3. Unplug the cables highlighted
in the figure,
using a 11mm wrench for the antenna cable.
Figure 7-63
4. Back off the 5 screws (a)
using a 4mm
hexagonal wrench.
5. Remove the lower guard.
To reassemble the Lower Guard, carry out the
above steps in reverse order.
