7.12. DISASSEMBLING THE LOWER DASHBOARD GUARD

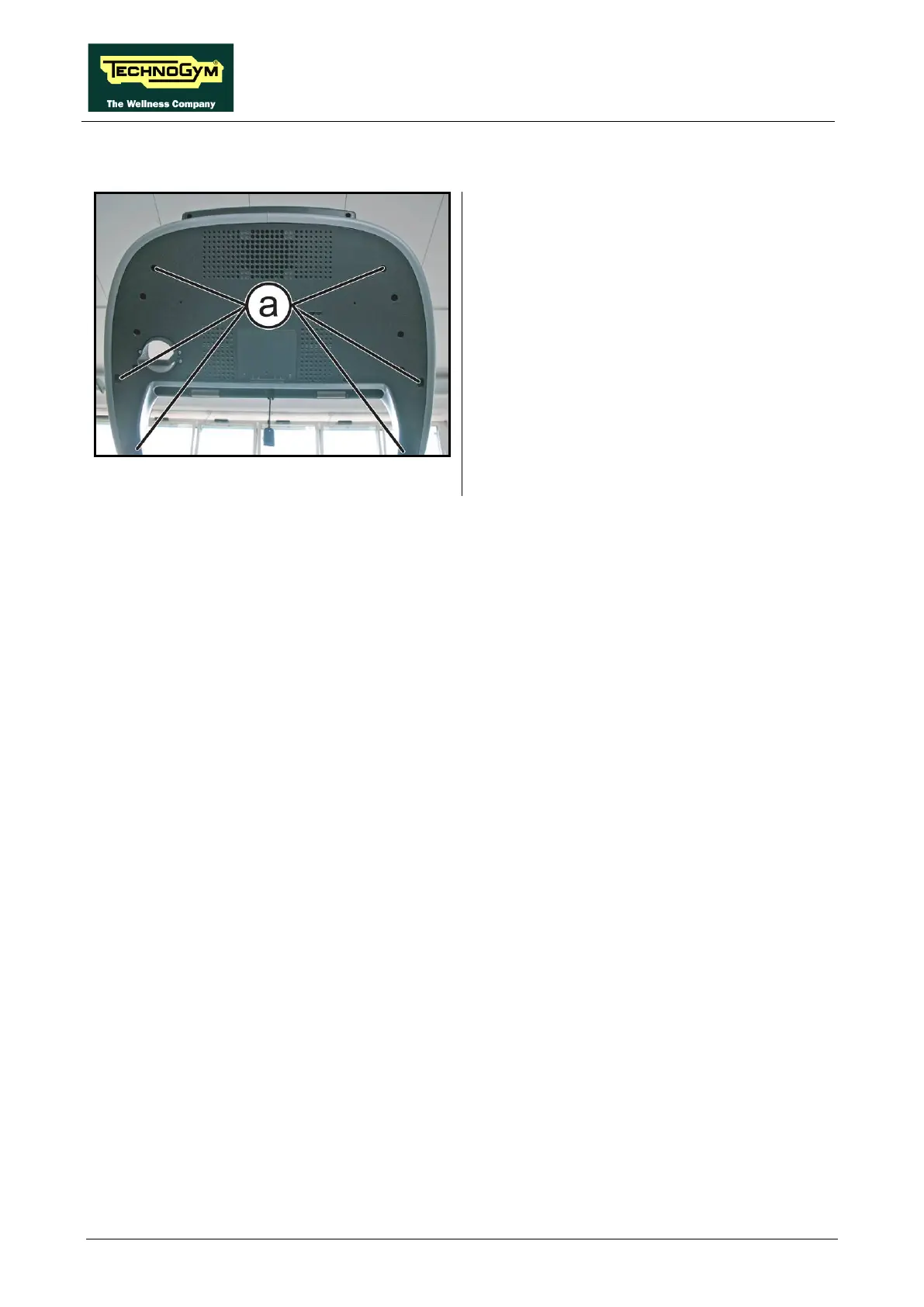

Figure 7-56
Carry out the procedure described in paragraph:
7.11.1. “Disassembling the upper dashboard
guard”.
1. Back off the 6 screws (a) using a 4mm
hexagonal wrench.
2. Remove the lower dashboard guard.
To reassemble the Lower Dashboard guard,
carry out the above steps in reverse order.
