Technogym RUN NOW EXCITE + - LCD Inverter (C)

RUN NOW Excite +: Technical Service guide - rev. 6.2
Page 7.9
7.2.2.4. LCD Inverter (C)

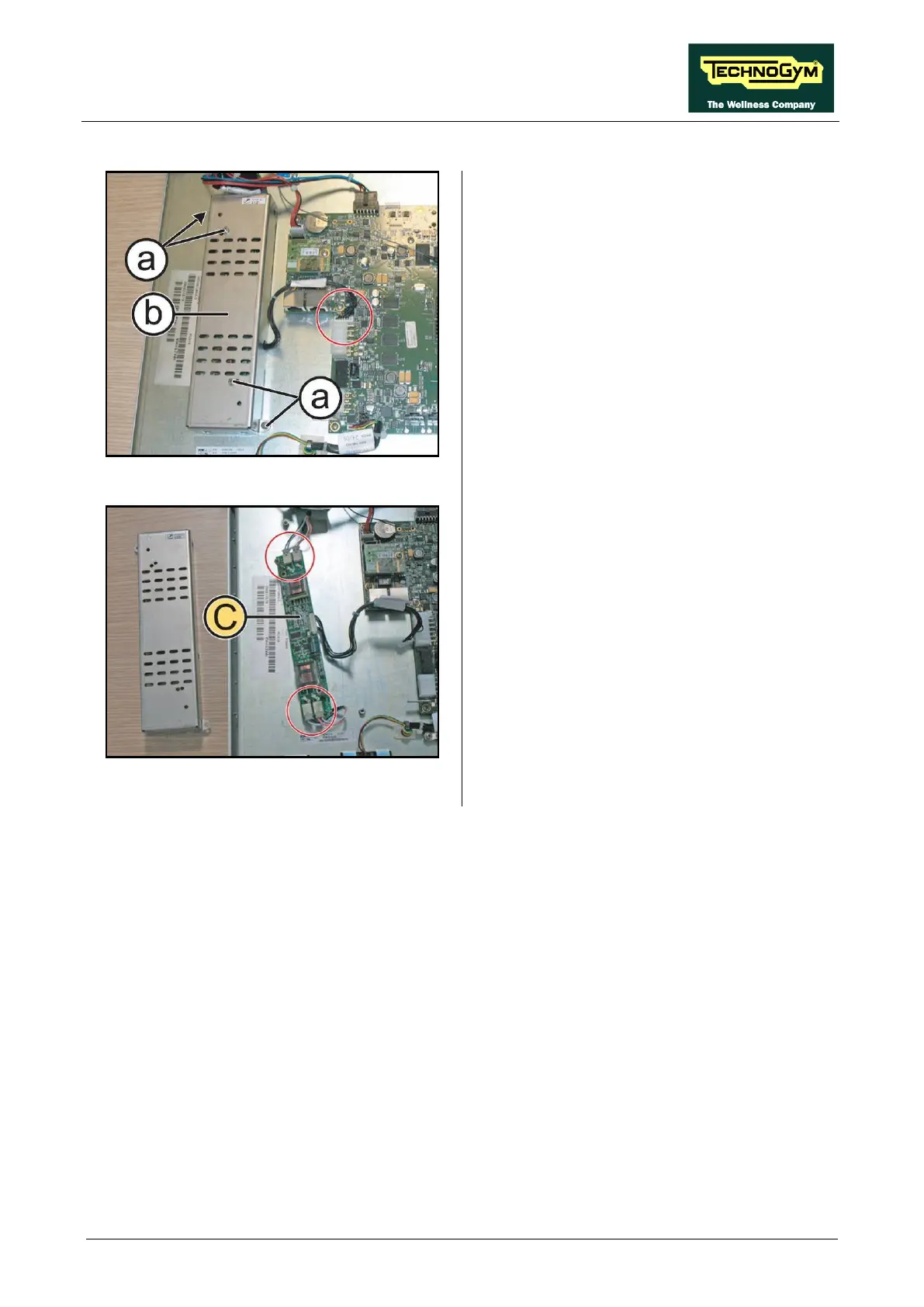

Figure 7-15
1. Disconnect the connector highlighted
in the
figure from the CPU.
2. Back off the 4 screws (a)
using a medium
Phillips screwdriver.
3. Remove the inverter guard (b).
Figure 7-16
4. Unplug the 4 connectors highlighted
in the
figure.
5. Remove the Inverter Board (C).
To reassembly the Inverter Board, follows the
above steps in the reverse order.
