7.17. DISASSEMBLING THE BELT MOTOR

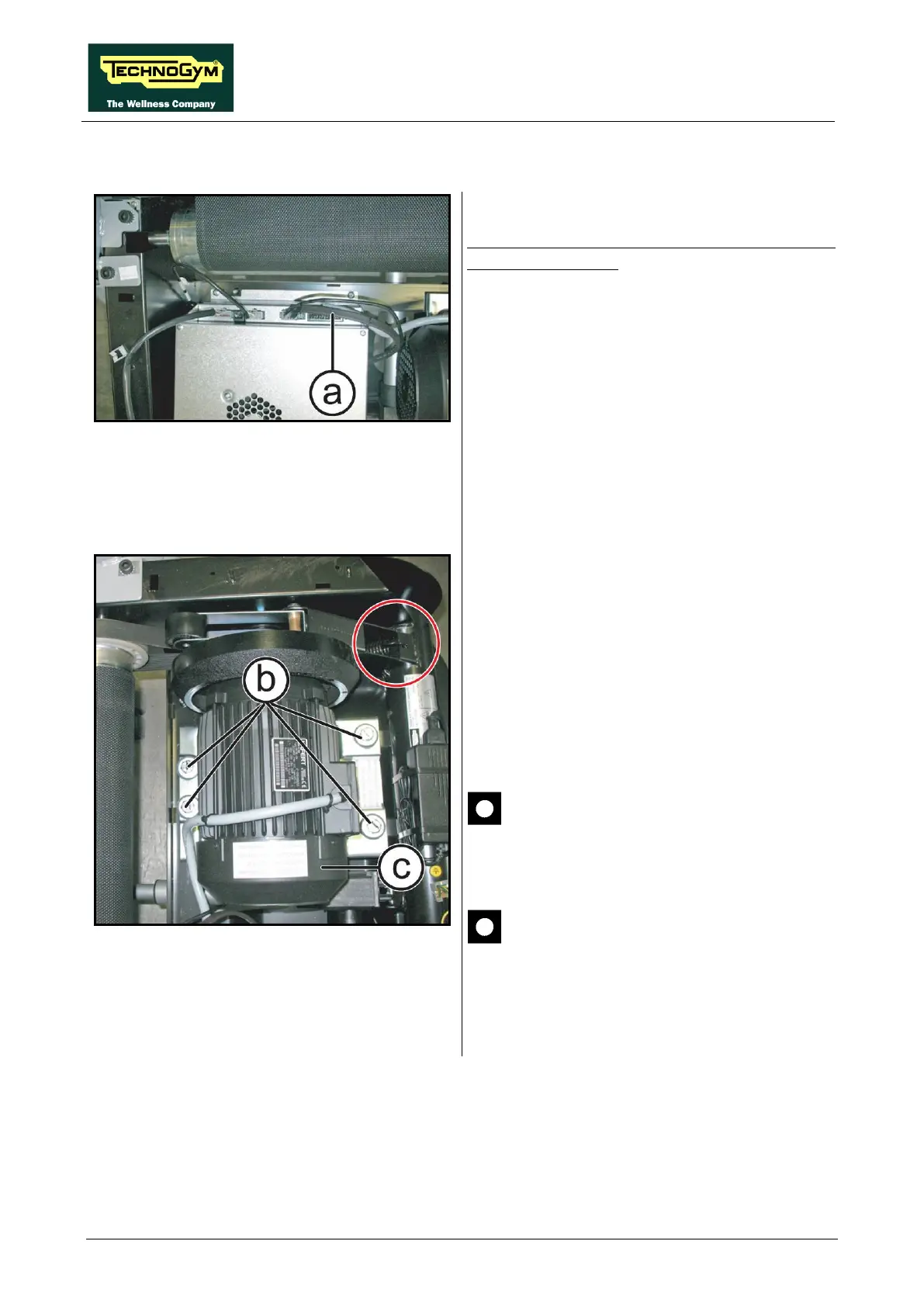

Figure 7-70
Turn off the machine and unplug the mains lead
from the wall outlet.
Carry out the procedure described in paragraph:
7.14.1. “Disassembling the upper guard”.
1. Unplug the connector (a)
of motor belt
highlighted in the figure.
Figure 7-71
2. Release the belt tensioner spring highlighted
in the figure.
3. Back off the 4 screws (b) that fix the tread
belt motor to the equipment frame,
using a
17mm socket wrench.
4. Remove the support plate
and the tread belt
motor (c).
To reassemble the belt motor, carry out the
above steps in reverse order.
CAUTION: During the reassembly lock
down the screws (b) u
sing a torque
wrench set for 15Nm.
CAUTION: At the end of the procedure,
check the tension and alignment of the
tread belt as detailed at paragraphs: 8.4.
“Aligning the tread-belt motor drive-
belt”.
