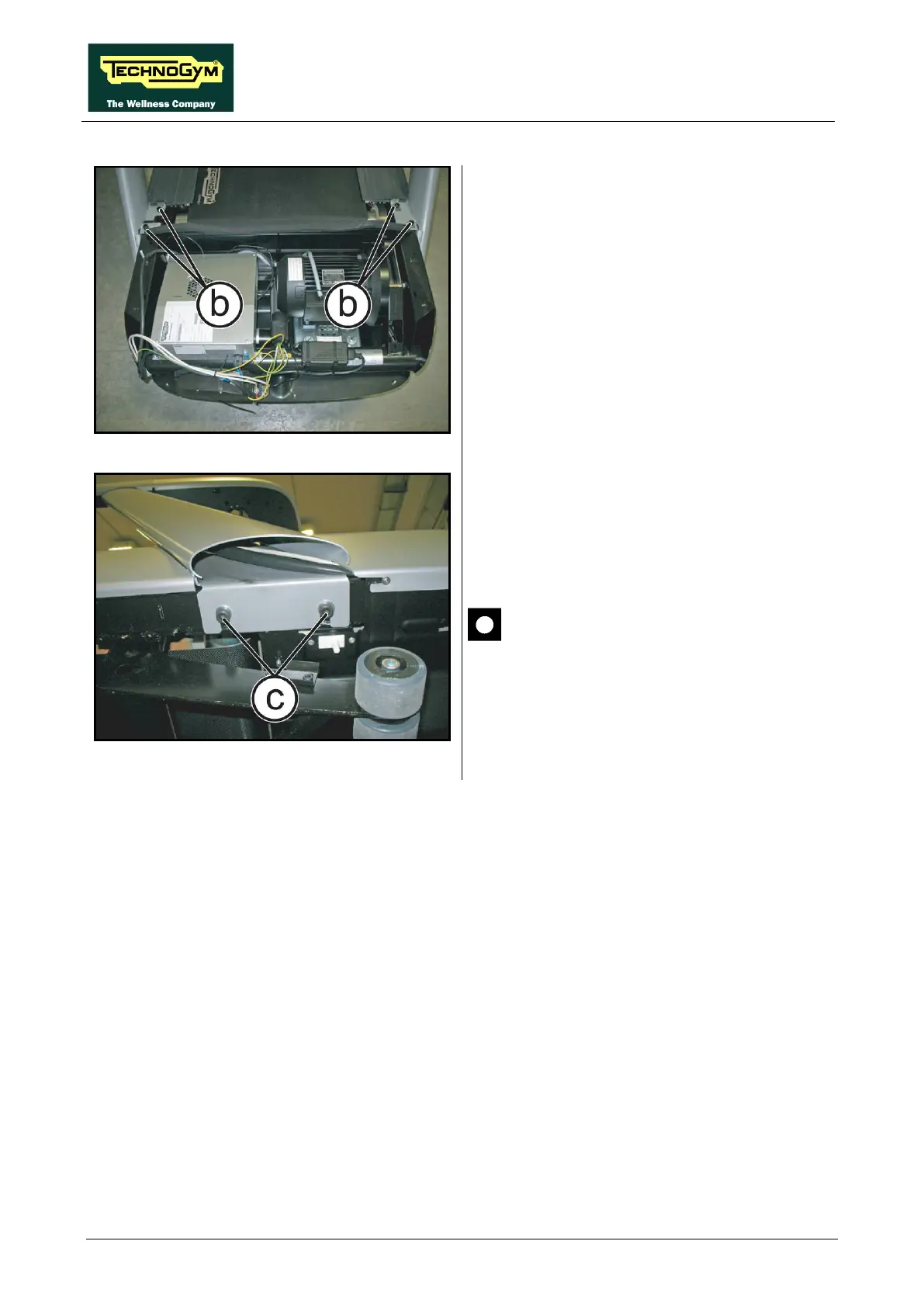

Figure 7-58
Carry out the procedure described in paragraph:
7.14.1. “Disassembling the upper guard”.
3. Back off the 4 screws (b)
hexagonal wrench.
Figure 7-59
4. Back off the 2 screws (c) using a 8mm
hexagonal wrench.
CAUTION: During the reassembly lock
down the screws (c) using a torque
wrench set for 30Nm.
