RUN NOW Excite +: Technical Service guide - rev. 6.2
Page 7.50

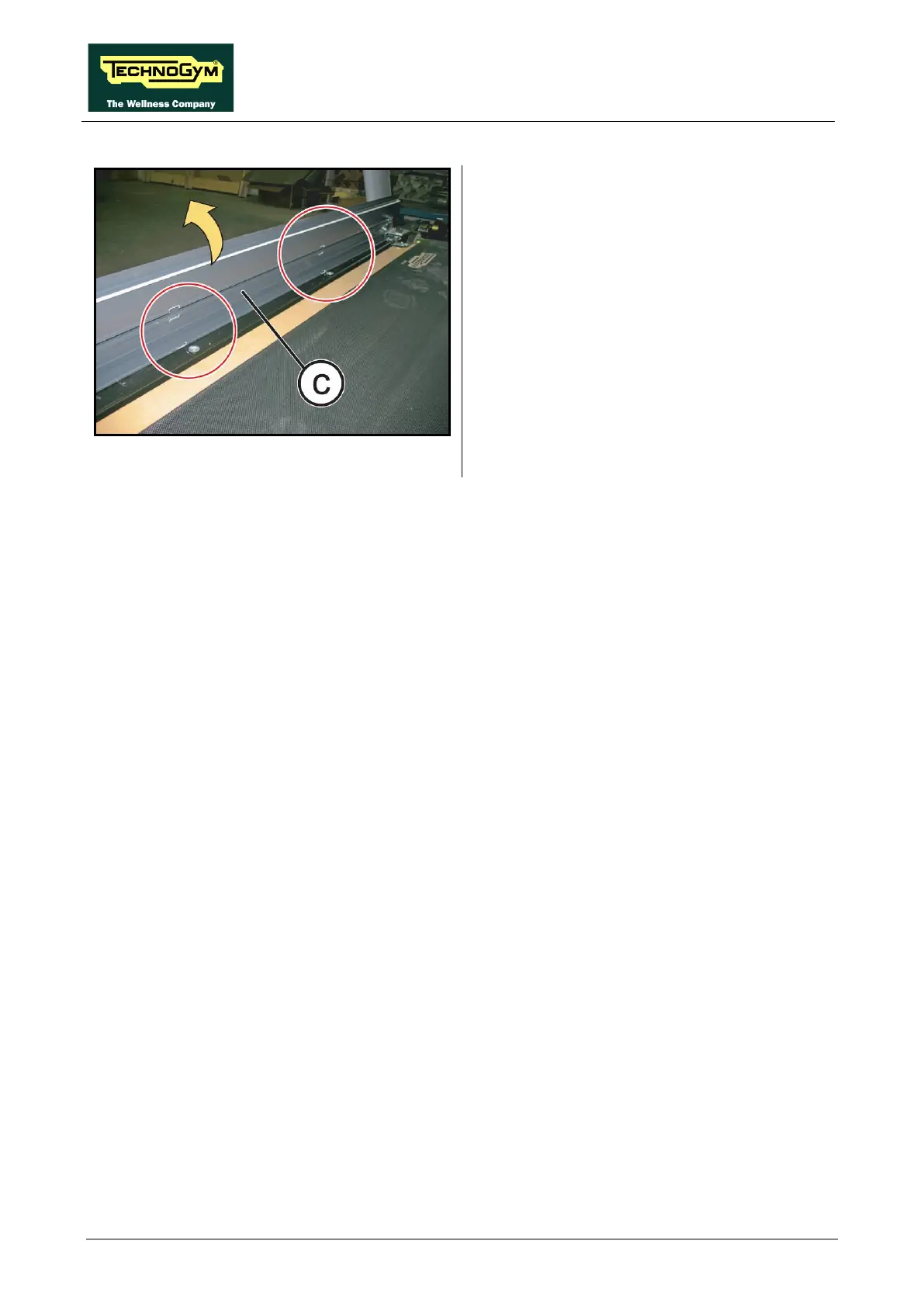

Figure 7-15
4.
Find the correct point where the slots on the
lower side of the footboard are matching with
the head of the screws on the frame. See
picture on the side.
5. Remove the footrest (c).
To reassemble the Footrest, carry out the above
steps in reverse order.
