MSP430 GPIO
Port Mapping

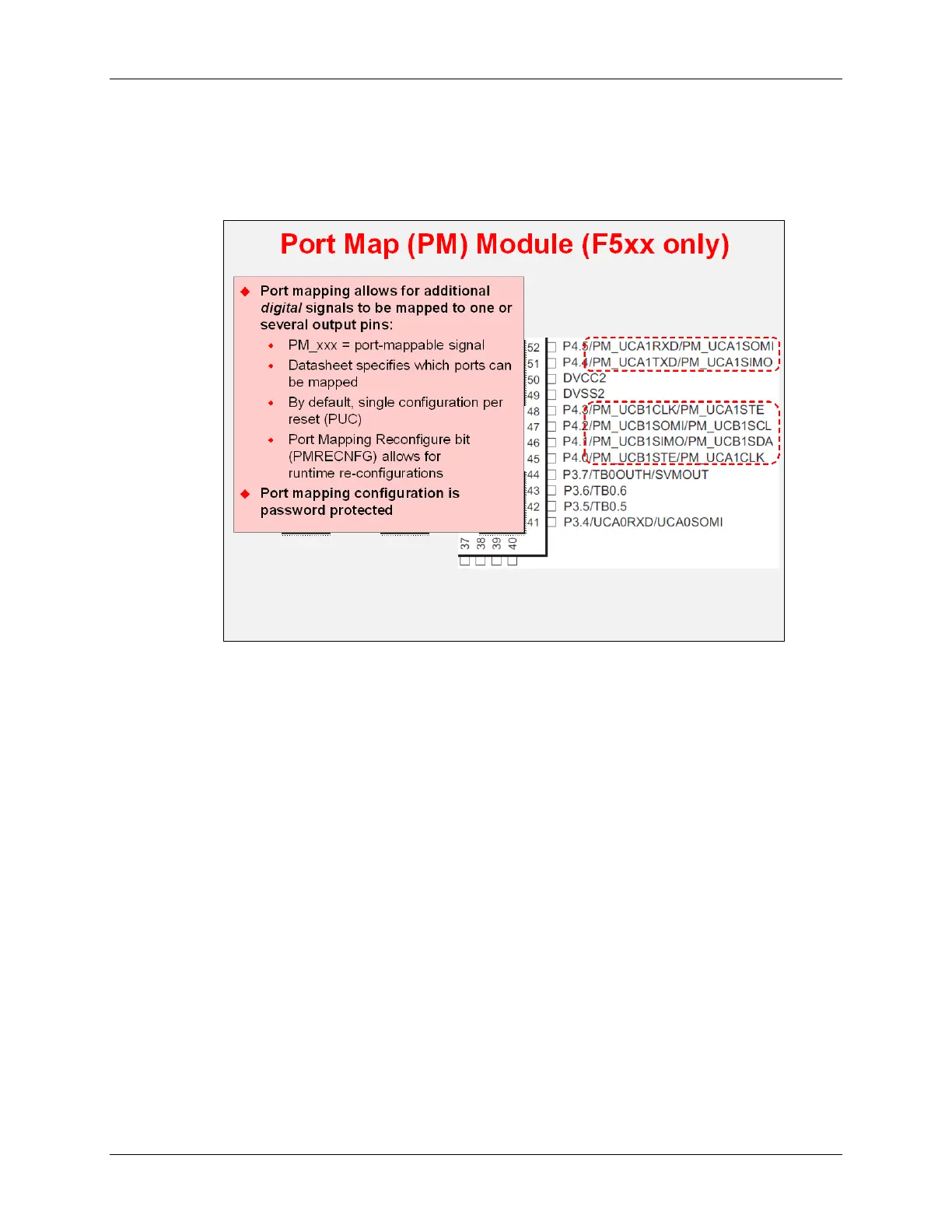

The MSP430F5xx and ‘F6xx devices provide the Port Map module which provides additional
flexibility for mapping functions to pins. The signals that can be mapped to the port mapping pins
are highlighted with a PM_ prefix.
On the device shown above, only Port 4 has been designed with the Port Mapping (PM) feature.
MSP430 Workshop - Using GPIO with MSP430ware 3 - 13
