Texas Instruments MSP430 Student Guide

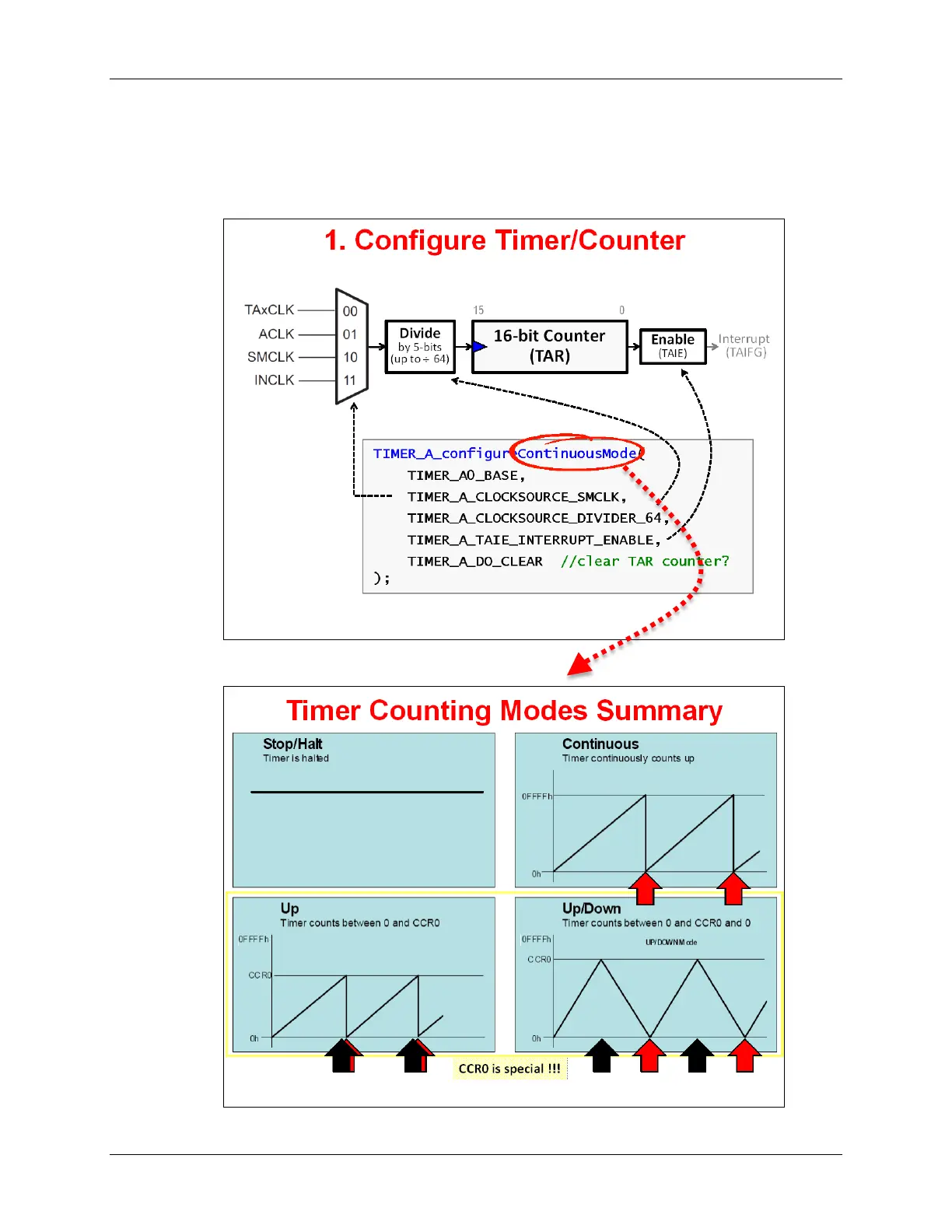

Timer Details: Configuring TIMER_A
Timer Counting Modes
There are three different ways that the timer counter (TAR) can be incremented. These correlate
to the three configuration functions listed on the previous page. This page provides a single-slide
summary of the different modes – but we’ll examine each one over the following three pages.
6 - 14 MSP430 Workshop - Timers
