Other Initialization (WDT, PMM)

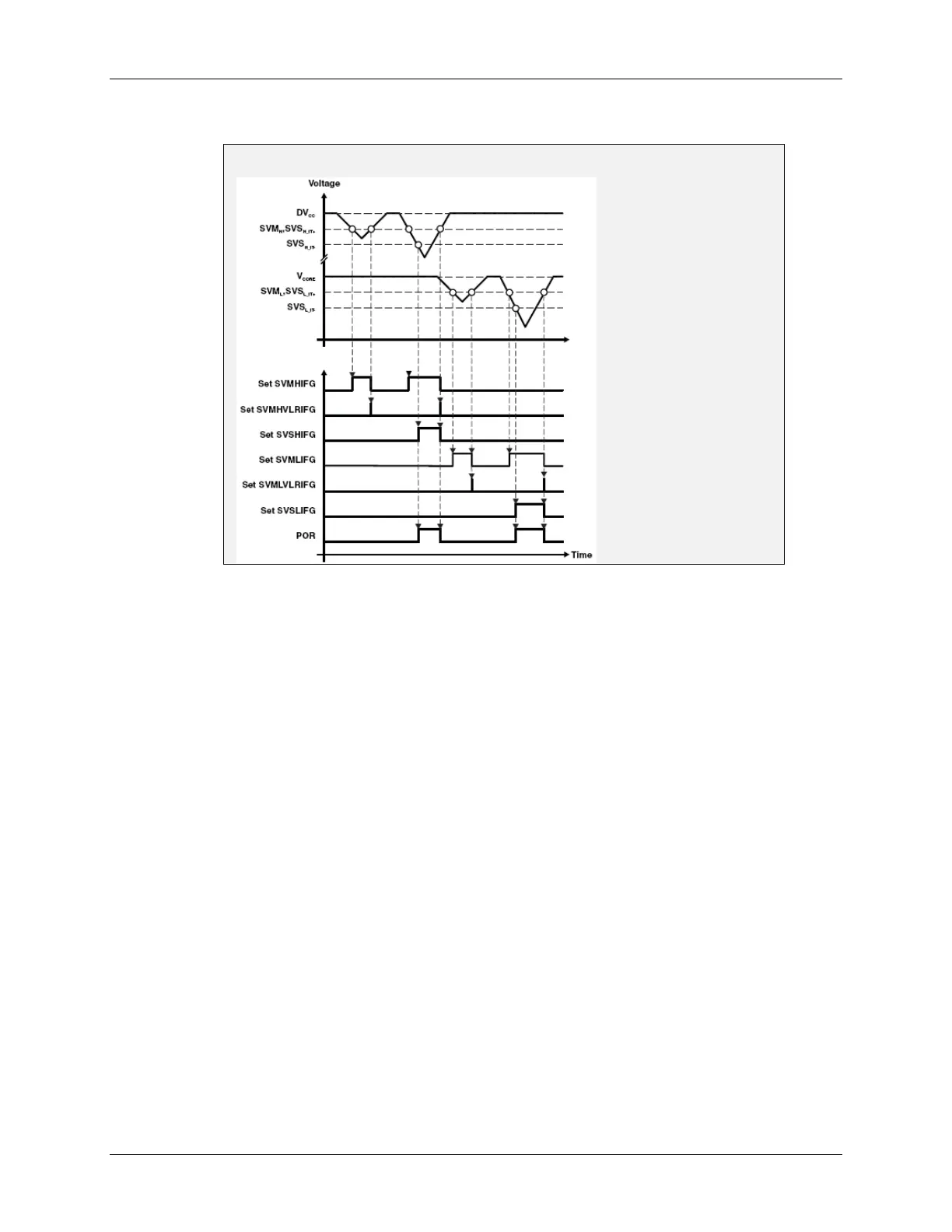

The following diagram may help you visualize how the Supply Supervisors work:
Supply Supervisor and Monitor (SVS, SVM)
A few remarks:

SVS and SVM can be disabled
 SVM provides “early” warning
and generates interrupts
 SVS turns off device – but also
sets an interrupt flag (check it
after reset)
 High side is the voltage input to
the device (prior to PMM’s LDO)
 Low side is the core voltage
(after LDO)
MSP430 Workshop - MSP430 Clocks & Initialization 4 - 35
