Maintenance and Troubleshooting
Analog Input/Output Problems
4-8 Micro-Tech 9101/9201 Reference Manual, Rev J Thermo Fisher Scientific

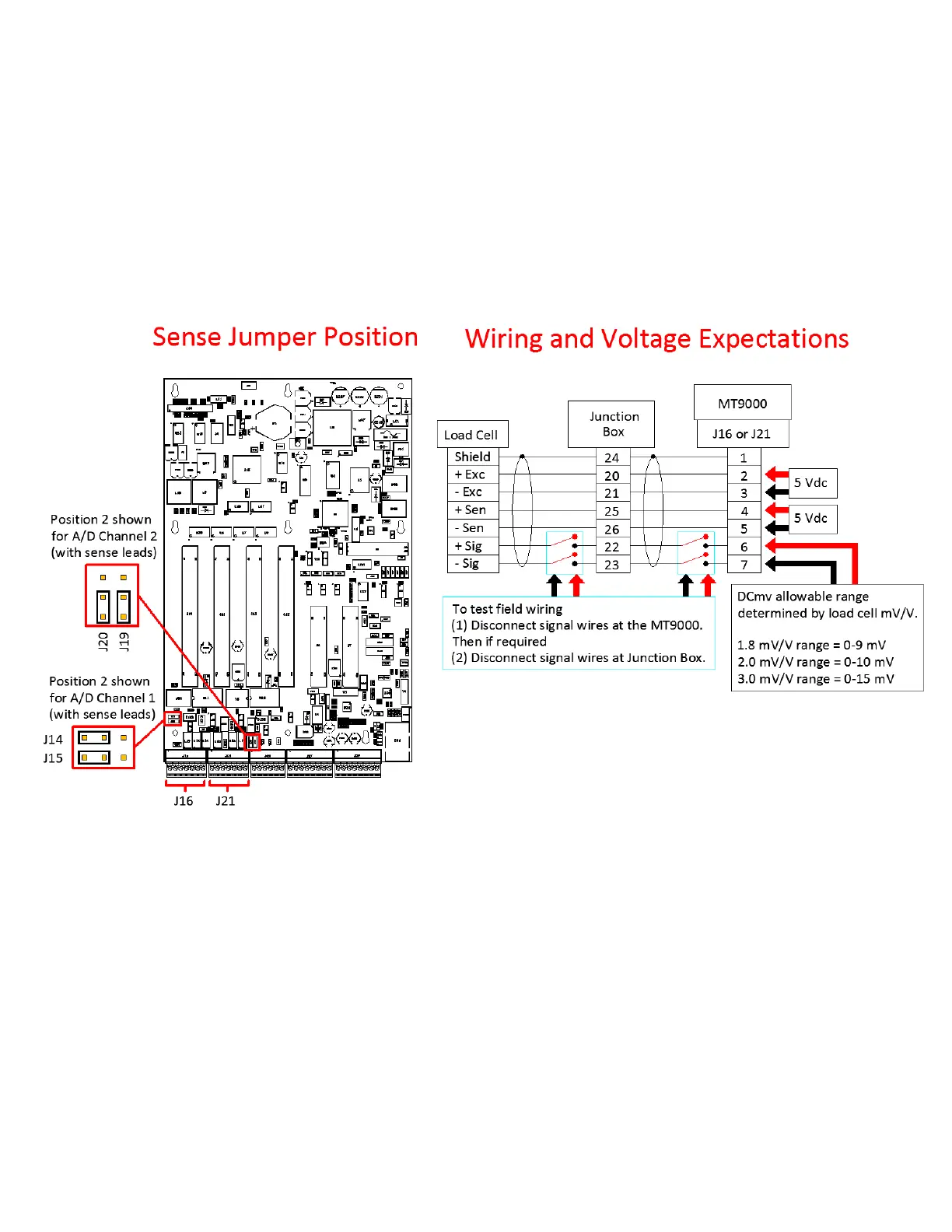

Figure 4–3. Six Wire Load-Cell, with Sense Leads
This section helps you troubleshoot the Micro-Tech’s analog
input/output circuitry. There are two types of optional analog output
printed-circuit board assemblies, as follows.
Populated (dual out and dual in)
Analog
Input/Output
Problems
To Next Page
