Thermo Scientific Micro-Tech 9101 - Pivot-to-Load-Cell Distance; Number of Weight Idlers

Initializing the Micro-Tech
Acquiring Basic System Data
2-6 Micro-Tech 9101/9201 Reference Manual, Rev J Thermo Fisher Scientific
NOTE. For more information about the parameters listed above, please
see pages 2-5 through 2-10. 
Measure the distance from the pivot to the load cell, and enter the result
in Table 2–1 or Table 2–2.

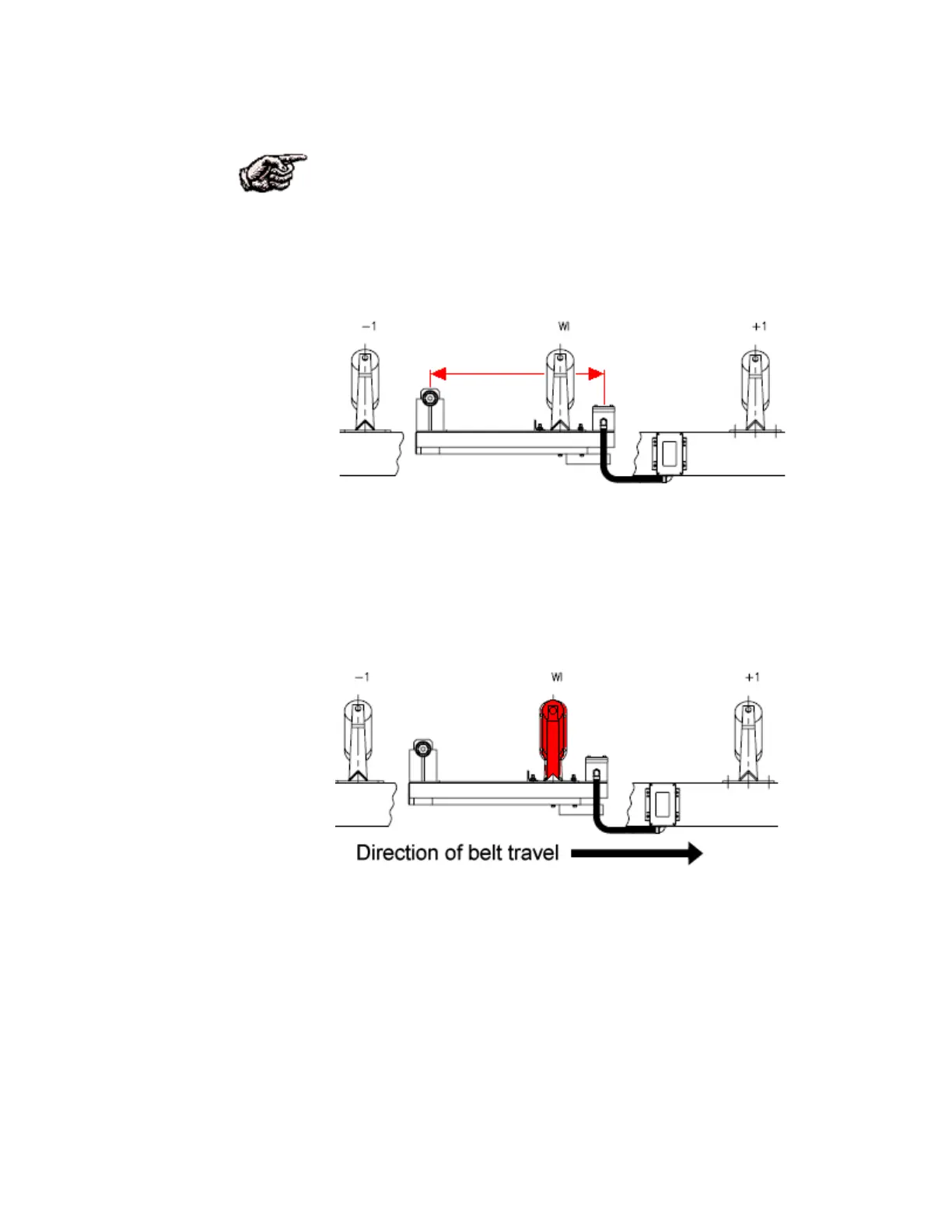

Figure 2–1. Pivot-to-Load-Cell Distance
Count the number of weight idlers and enter the result in Table 2–1 or
Table 2–2.
Figure 2–2. Number of Weight Idlers
Pivot-to-Load-Cell
Distance
Number of Weight
Idlers
