Thermo Scientific Micro-Tech 9101 - Four-Wire Load-Cell, No Sense Leads

Maintenance and Troubleshooting
Load-Cell Problems
Thermo Fisher Scientific Micro-Tech 9101/9201 Reference Manual, Rev J 4-5
The following sections contain detailed wiring diagrams for the load-cell
set-ups listed below to help you troubleshoot your particular system.
 Four-wire load cell—with no field sense leads.
 Four-wire load cell—with field sense leads.
 Six-wire load cell—with field sense leads.
Please refer to the figure below for more information about four-wire
load cells with no field sense leads. Model 9101 Sense Jumpers shown
below. See “Appendix A – Premium A/D Jumper Locations” for Model
9201 jumper locations.

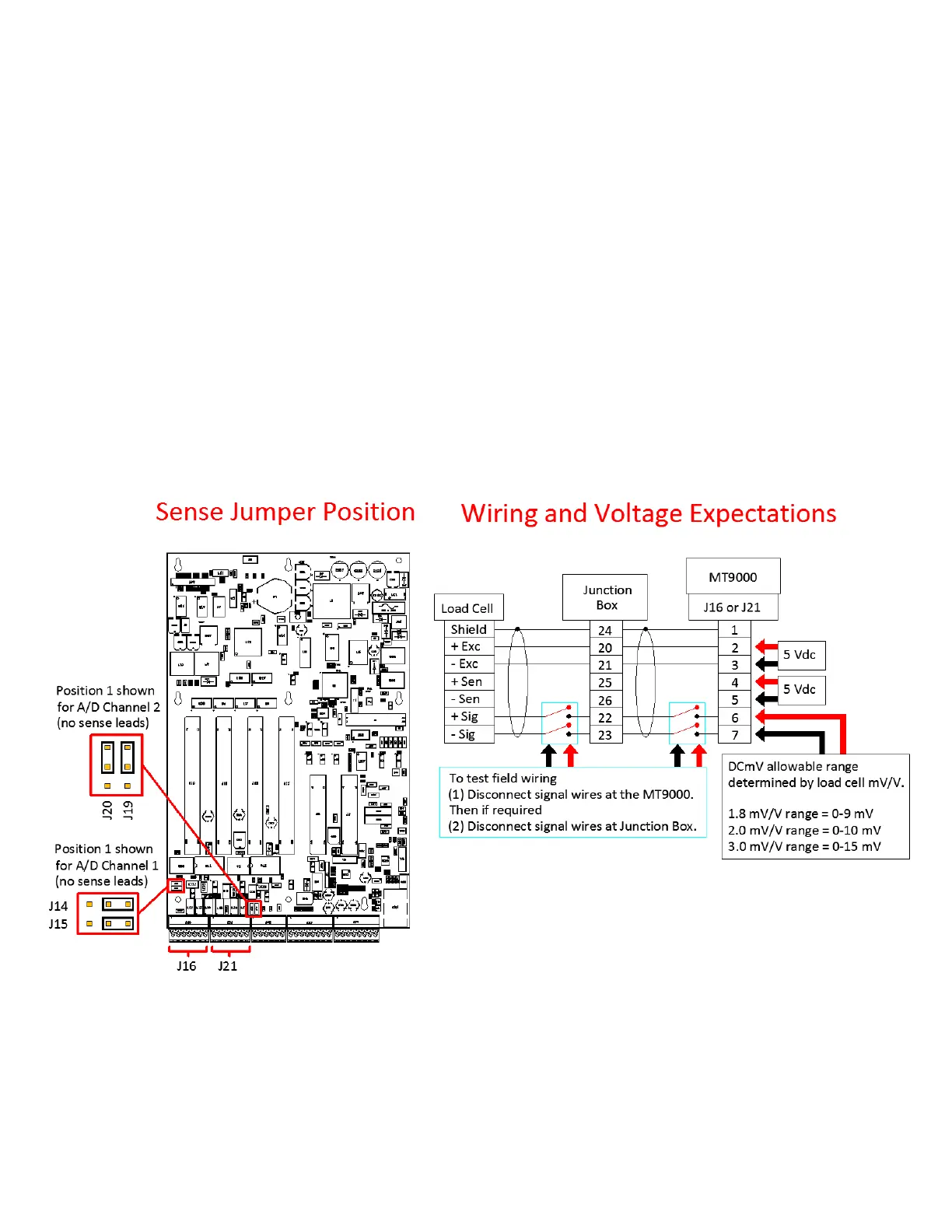

Figure 4–1. Four-Wire Load-Cell, No Sense Leads
Four-Wire Load-
Cell
, No Sense
Leads
