Initializing the Micro-Tech
Acquiring Basic System Data
Thermo Fisher Scientific Micro-Tech 9101/9201 Reference Manual, Rev J 2-7
Measure the distance between the pivot and the first idler, and enter the
result in Table 2–1 or Table 2–2. Please note, there may be subsequent
(that is, additional) idlers.

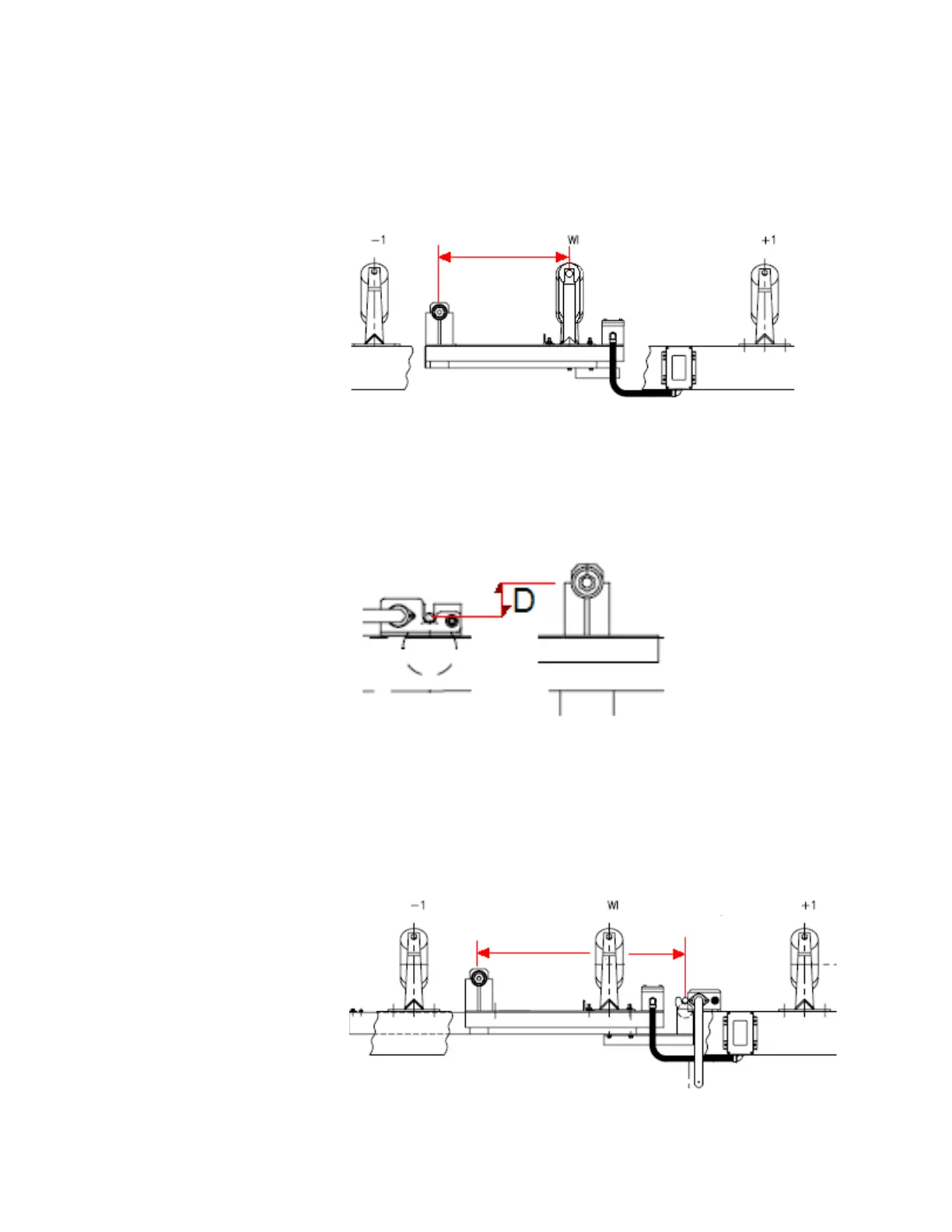

Figure 2–3. Pivot-to-First-Idler Distance
If the static-weight option is installed, measure the height from the pivot
to the test weight, and enter the result in Table 2–1 or Table 2–2. If the
test weight is below the pivot, the value is negative. If this option is not
available, leave at the default value.
Figure 2–4. Pivot-to-Test-Weight Height
If the static-weight option is installed, measure the length from the pivot
to the test weight, and enter the result in Table 2–1 or Table 2–2. If this
option is not available, leave at the default value.
Pivot-to-First-Idler
Distance
Pivot-to-Test-Weight
Height
Pivot-to-Test-Weight
Length
