Thermo Scientific Micro-Tech 9101 - Opto22 Input Board

Thermo Fisher Scientific Micro-Tech 9101/9201 Reference Manual, Rev J A-37
This is an optional board with three inputs (inputs #3–5). The module
options are as follows.
 240VAC In Module (G4IAC5A)
 Input voltage range: 180-280 VAC or VDC.
 Input current at maximum line: 5mA.
 120VAC In Module (G4IAC5)
 Input voltage range: 90-140 VAC or VDC.
 Input current at maximum line: 5mA.
 32VDC In Module (G4IDC5)
 Input voltage range: 10-32VDC; 12-32VAC.
 Input current at maximum line: 25mA.
Install in slots U1–U3 on the input board.
Part number = 102999

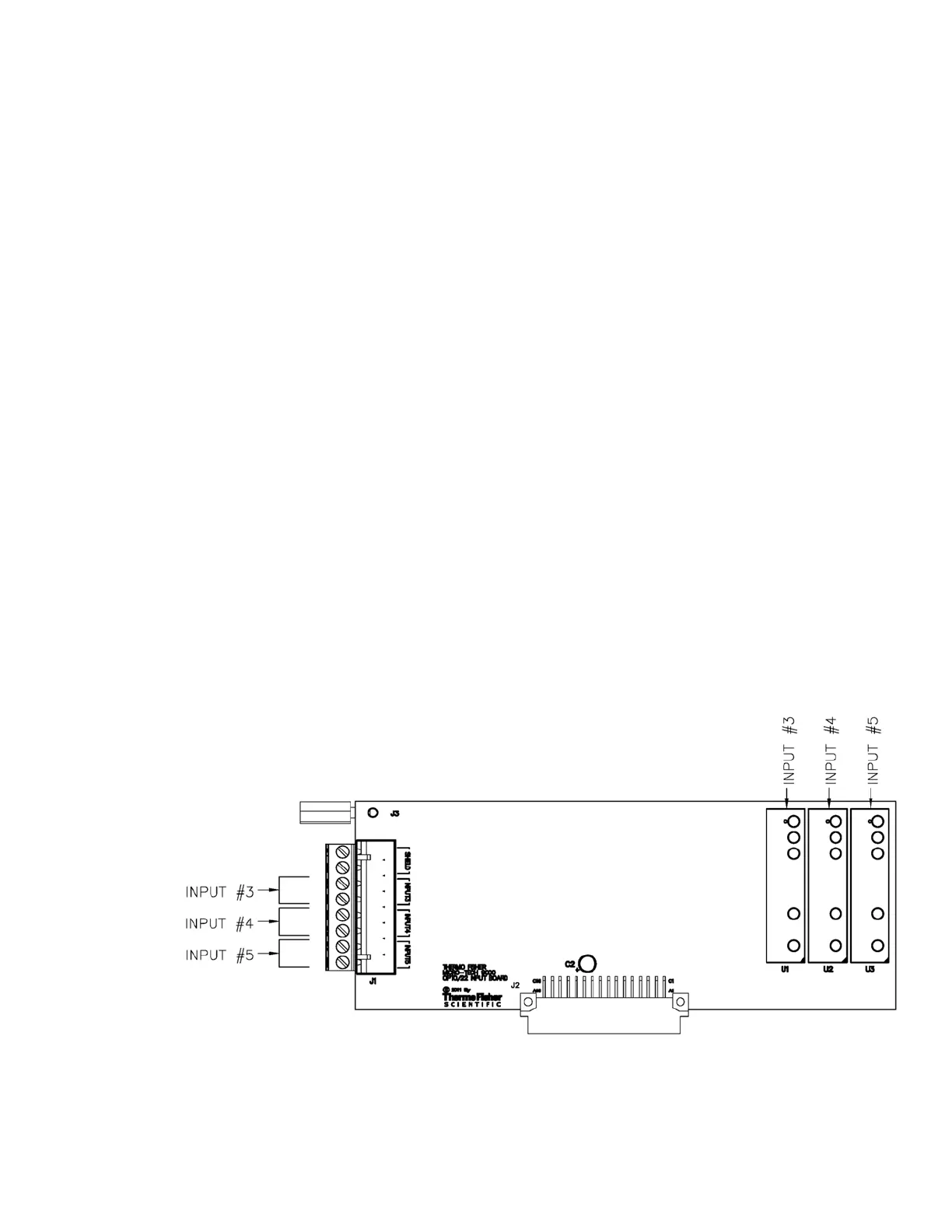

Opto22 Input
Board
