Thermo Scientific Micro-Tech 9101 - Opto22 Output Board

Thermo Fisher Scientific Micro-Tech 9101/9201 Reference Manual, Rev J A-39

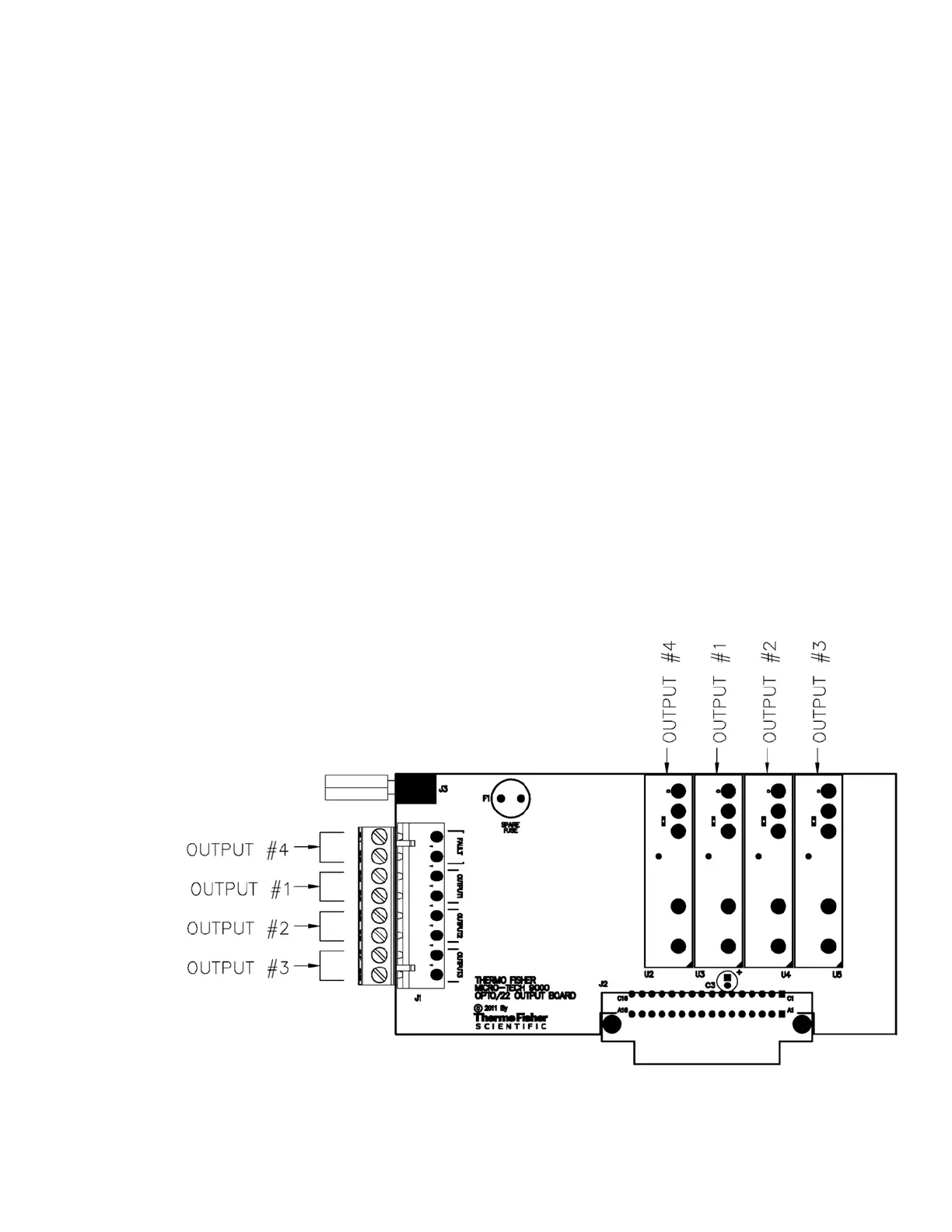

This is an optional board. There are four (4) outputs (outputs #1–4).
Modules are installed in slots U2–U5 on the output board. One spare
fuse is located on the output board. The module options are as follows.
 240VAC Out Module, G4OAC5A.
 Output voltage range: 24-280 VAC.
 2A at 50°C ambient.
 Replaceable 250V 4A fuse.
 60VDC Out Module, G4ODC5.
 Output voltage range: 5-60 VDC.
 2A at 50°C ambient.
 Replaceable 250V 4A fuse.
 Dry (Reed) Out Module, G4ODC5R.
 Contact rating: 10 VA.
 Maximum switching voltage: 100VDC, 130VAC.
 Maximum switching current: 0.5A.
 Replaceable 250V 1A fuse.
Part number = 103003
Opto22 Output
Board
