Maintenance and Troubleshooting
Opto22 Problems
4-20 Micro-Tech 9101/9201 Reference Manual, Rev J Thermo Fisher Scientific
3. Outputs—Sourcing. Force the output number open/closed.

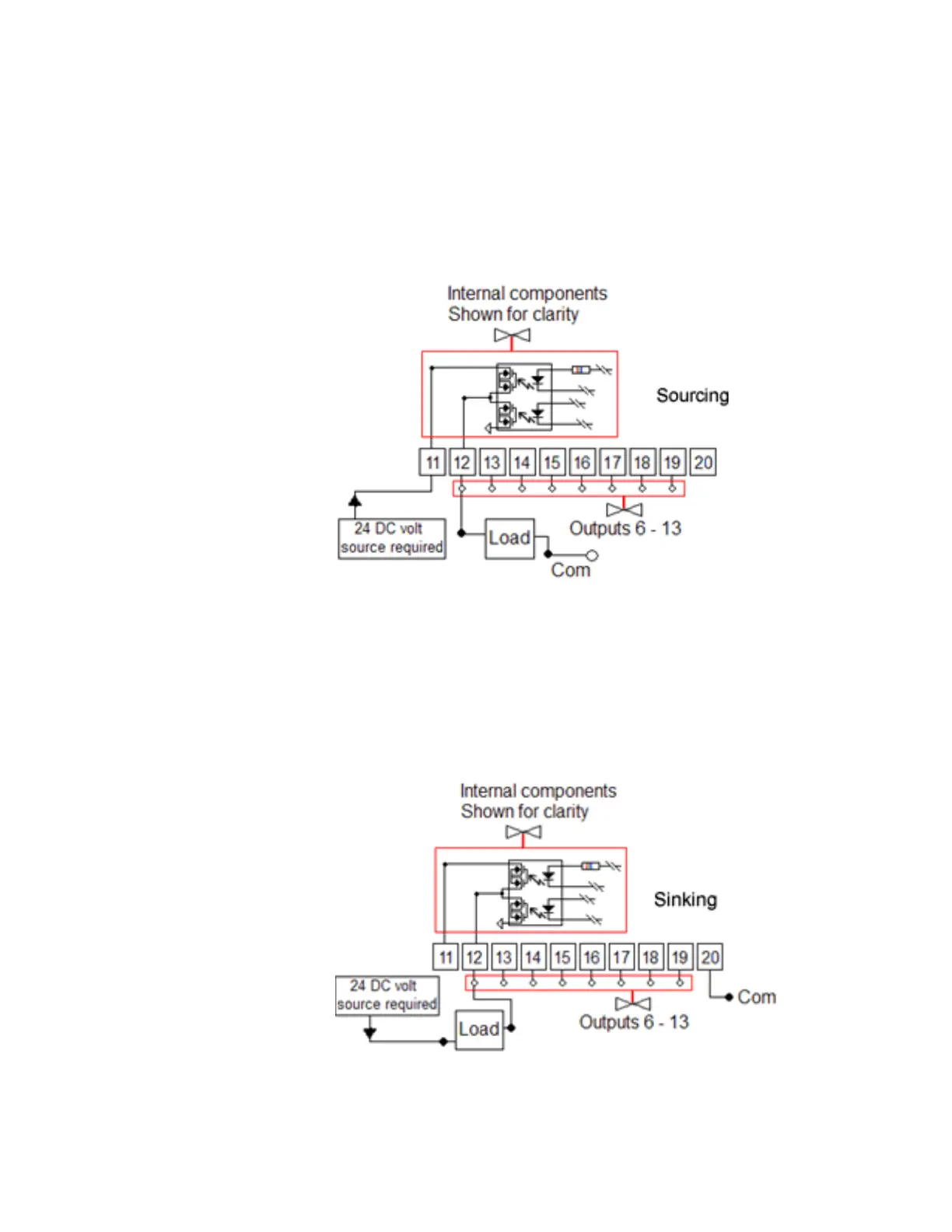

Figure 4–13. DIO Troubleshooting—Sourcing
4. Outputs—Sinking.
Figure 4–14. DIO Troubleshooting—Sinking
