Configuring LAG LAG Configuration
User Guide 115
as “SRC MAC” to allow Switch A to determine the forwarding port based on the source
MAC addresses of the received packets.

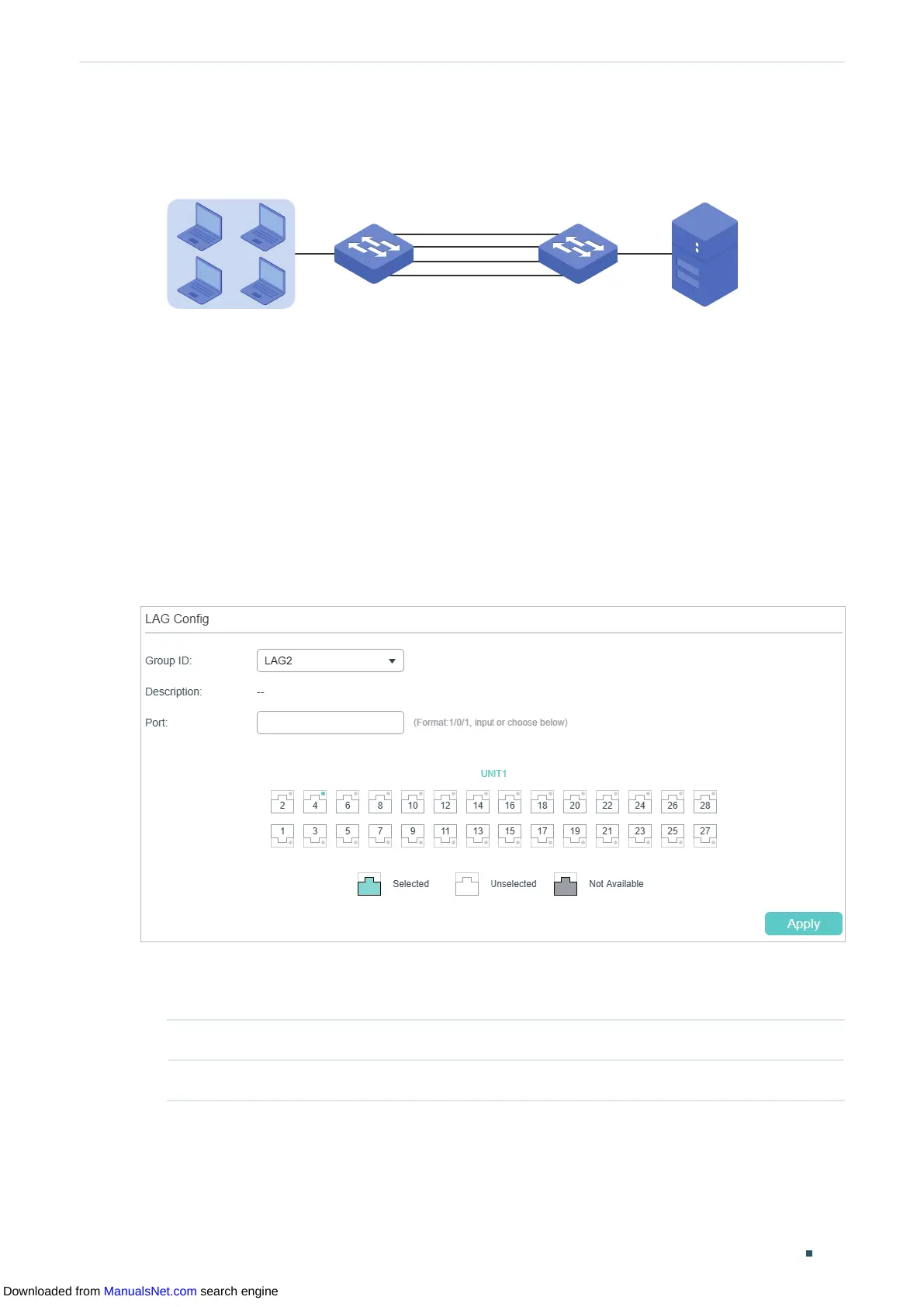

Figure 2-2 Hash Algorithm Configuration
Switch A Switch B
Hosts Server
2.1.2 Configuring Static LAG or LACP
For one port, you can choose only one LAG mode: Static LAG or LACP. And make sure both
ends of a link use the same LAG mode.
■ Configuring Static LAG
Choose the menu L2 FEATURES > Switching > LAG > Static LAG to load the following
page.
Figure 2-3 Static LAG
Follow these steps to configure the static LAG:
1) Select an LAG for configuration.
Group ID Select an LAG for static LAG configuration.
Description Displays the LAG mode.
2) Select the member ports for the LAG. It is multi-optional.
3) Click Apply.
