Configuring DHCP Service Configuration Examples
User Guide 415
3) Configure DHCP VLAN Relay on the DHCP relay agent. Enable DHCP Relay globally,
choose the VLAN interface 1 (the default management VLAN interface) as the default
relay agent interface, and specify the DHCP server address for VLAN 10 and VLAN 20.
In this example, the DHCP server is demonstrated with T2600G-28TS and the DHCP relay
agent is demonstrated with T1500-28PCT. The following sections provide configuration
procedures in two ways: using the GUI and using the CLI.
4.1.3 Using the GUI
■ Configuring the DHCP Server
1) Choose the menu L3 FEATURES > DHCP Service > DHCP Server > DHCP Server to
load the following page. In the Global Config section, enable DHCP Server globally.

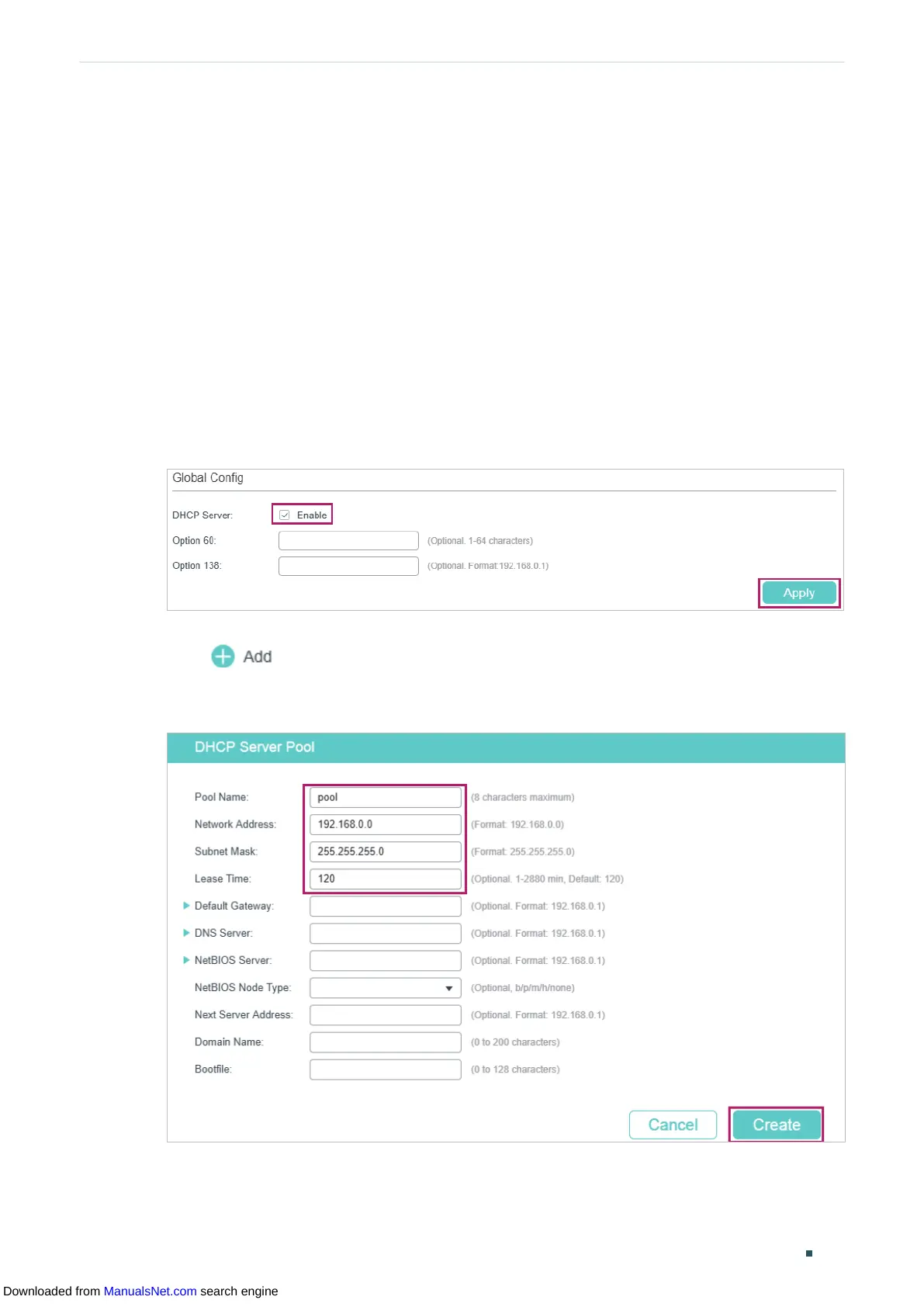

Figure 4-2 Configuring DHCP Server
2) Choose the menu L3 FEATURES > DHCP Service > DHCP Server > Pool Setting and
click to load the following page. Create a DHCP pool for the clients. Configure
the corresponding parameters as the following picture shows.
Figure 4-3 Configuring DHCP Pool 1 for VLAN 10
