User Guide 446
Configuring QoS Class of Service Configuration
2.1.4 Specifying the Scheduler Settings
Specify the scheduler settings to control the forwarding sequence of different TC queues
when congestion occurs.
Choose the menu QoS > Class of Service > Scheduler Settings to load the following
page.

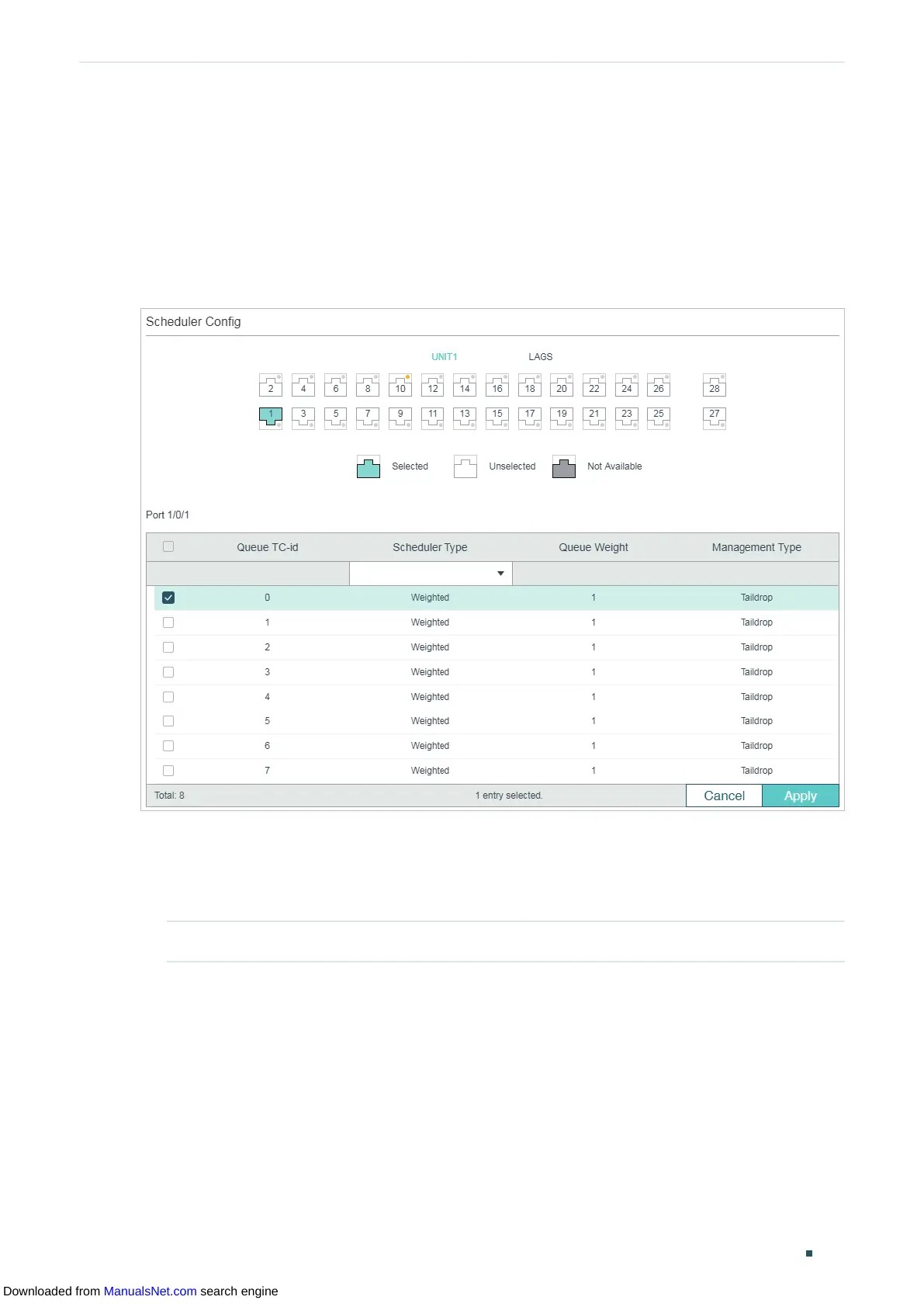

Figure 2-8 Specifying the Scheduler Settings
Follow these steps to configure the schedule mode:
1) In the Scheduler Config section, select the desired port.
2) Select the desired queue and configure the parameters.
Queue TC-id Displays the ID number of priority Queue.
