Configuring DHCP Service Configuration Examples
4.2.3 Configuring the DHCP Relay Switch
Using the GUI
Follow these steps to configure DHCP relay and enable Option82 in DHCP Relay on
SwitchA:
1) Choose the menu L3 FEATURES > DHCP Service > DHCP Relay > DHCP Relay Config
to load the following page. In the Global Config section, enable DHCP Relay, and click
Apply.

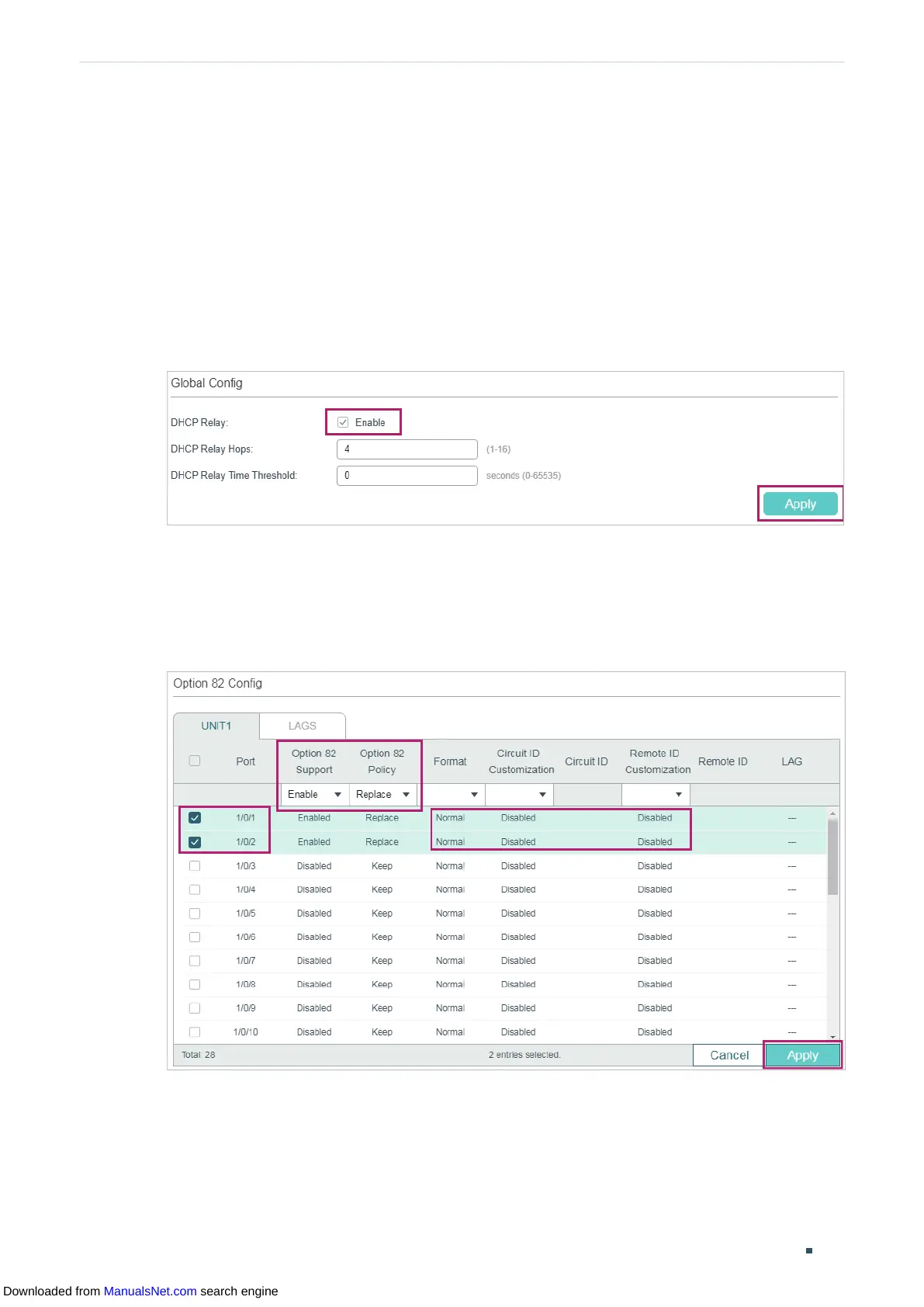

Figure 4-11 Enable DHCP Relay
2) In the Option82 Config section, select port 1/0/1 and port 1/0/2, enable Option82
Support and set Option82 Policy as Replace. You can configure other parameters
according to your needs. In this example, the Format is set as Normal, and Circuit ID
Customization and Remote ID Customization as Disabled. Click Apply.
Figure 4-12 Configure Option82
3) Choose the menu L3 FEATURES > DHCP Service > DHCP Relay > DHCP VLAN Relay
to load the following page. In the Default Relay Agent Interface section, configure the
