Configuring LLDP Configuration Example
User Guide 387

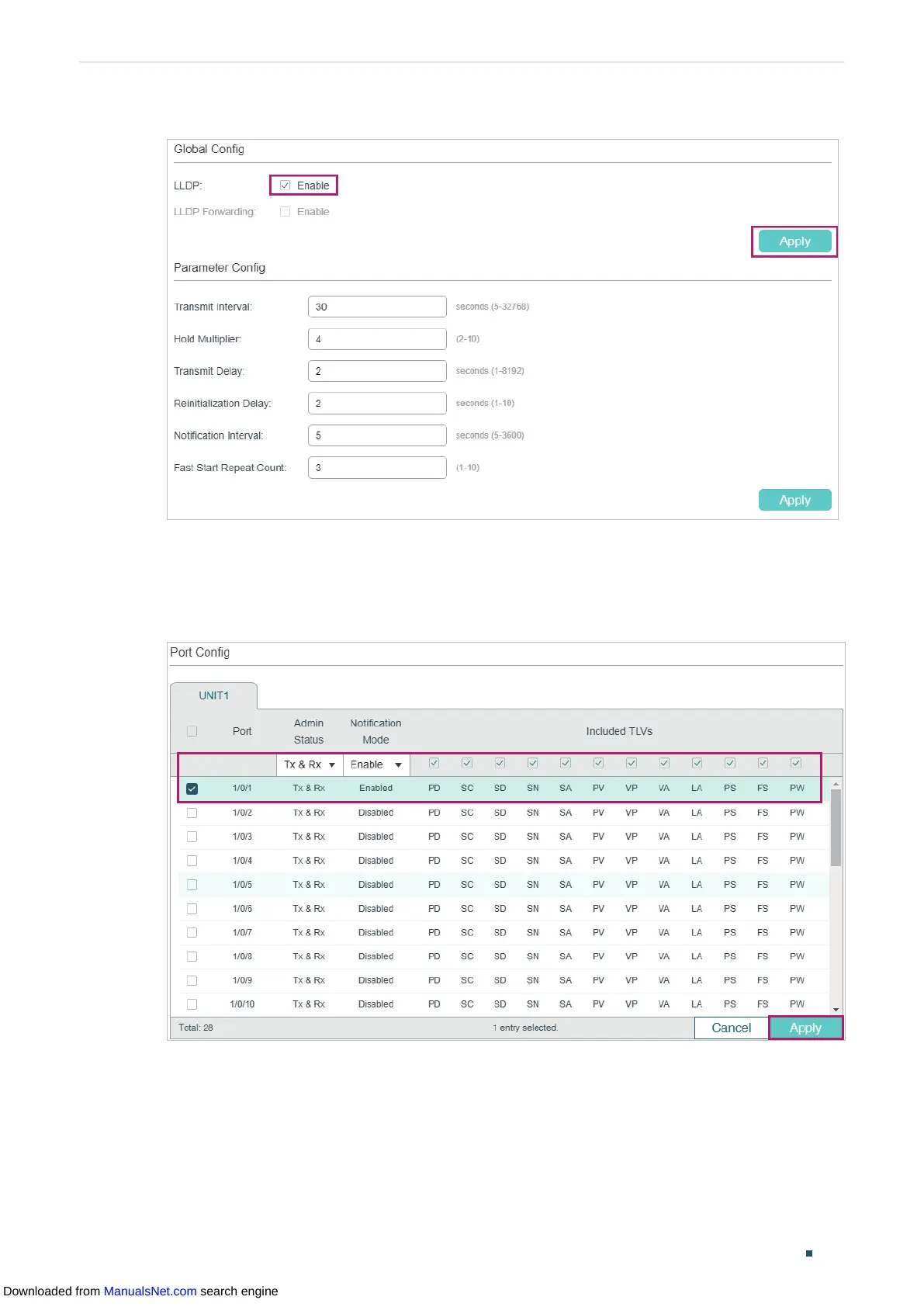

Figure 6-2 LLDP Global Config
2) Choose the menu L2 FEATURES > LLDP > LLDP Config > Port Config to load the
following page. Set the Admin Status of port Fa1/0/1 as Tx&Rx, enable Notification
Mode and configure all the TLVs included in the outgoing LLDP packets.
Figure 6-3 LLDP Port Config
6.5 Using CLI
1) Enable LLDP globally and configure the corresponding parameters.
Switch_A#configure
